Well the Apex Encore is sold out everywhere not paying scalper prices and not buying an open box. Missing out on like 1-2 fps and .3-.5ms frame time stock thanks to the ram on how I have to run it. Oh well it is what it is.

I miss ModRigs working :(

donta1979
Golden production sample Asus Maximus z790 Apex Encore incoming -.-

CyberbrainPC

ooh congrats and elaborate?!

I have an Apex Encore that I haven't had time to mess with yet, but hopefully soon! We can compare!



Well I already know I have a golden off the production line board bought it from chispy at GURU3D/OCN/HWBot, he does 8800mhz on pretty effortlessly for 24/7 use. My limiting factor will be my CPU's IMC, since my cpu has only been on a 4 dimm board the Rog Strix Z790-E that in itself already does not give me idea where the chips imc stands. It ran 7200mhz cl34 under the right bios's all the newer ones with a with a 8 in them kind of killed 7200mhz cl34 xmp support. So I will be able to get 7800mhz in xmp right off the bat, my current kit 7200mhz cl34 will work flawlessly but tuning it to cl28 if the imc is not up for it may not be possible. I will not know until the board gets here unfortunately.

CyberbrainPC
I miss ModRigs working :(

yup me too....

donta1979
Well board is here and installed. Ram will be here tomorrow T-Force XTREEM ARGB 8000mhz cl38 2x24
SP P:115, E:91, IMC:83
So I know my cpu is a full lottery now thanks to the Apex Encore. This board is so nice.

Looking forward to some pics if you have time to post them.

Nice looking rig.   I like the dark blue & purple color scheme with the hint of white. Looks sharp.

That rig looks great!

donta1979
So on my Rog Strix E no matter what I did I could not break past 22-24.xK on my cpu. I get the Z790 Apex Encore am running my ram at 7200mhz cl34.... and yeah 25k automatically on windows 11 23h2...

Very nice machine .
Ive been looking at components lately, and I noticed that a couple of reviewers
were using the exact same board as you are :)
Including the TweakTown guy Patriot Viper Elite 5 RGB DDR5-6000 96GB Dual-Channel Memory Kit Review (tweaktown.com)

Too the Moon !


Probably safe to say Mod Rigs is not going to get fixed

Well I now have the Apex Encore found something out that is interesting. The outsourced company asus uses to make their bios's Shamino is not making them... Well on Teamgroup ram the SA VID voltage they set it so low on auto you are not getting past 7600mhz.... If you are not paying attention, you can get about 6-10hrs on Karhu without it throwing an error on teamgroup 8000-8200mhz ram if you set in my case the MC to 1.375 instead of its auto 1.385.

You put G.Skill ram into the board 8000-8200mhz it will set the SA VID around 1.3v on auto. Treamgroup nope... Its like they just tested the teamgroup 7600mhz and said yeah this is good enough.

Next my cpu saga, my IMC on my 13900k is weakened if I mess with the SA VID I can get 7600mhz stable, Well I have Teamgroup XTREEM ARGB 8000mhz cl38 I want that and know for a fact this board runs 8000-8400mhz no problem. So not knowing about the SA VID issue, I get a 14900k got set it to 7600mhz after everything I thought of trying at 8000mhz it was not having it. Well the cpu yeeted the next morning... Got a 14900ks it would not run anything 7200-8000mhz second, I clicked Karhu it would lock up my screen and I was forced to reboot. Returned it and it seems the return has magically gone MIA in UPS's clutch's. The only positive is I got the new Star Wars game for free... I go and get another 14900k from best buy, 7600mhz stable cool, 8000mhz no, lowered my MC voltage to 1.375 I get anywhere from 6-10hrs on Karhu then an error. Then I was like what is going on the board I know can do 8000-8400mhz, the fact I can make karhu run so long it should be doable.

So I did some reading, I saw other boards that are running g.skill. I then saw a video of asrocks new z790 itx board and saw Teamgroup kits 8000mhz was running with the SA VID at 1.25 on and on the 8200mhz kit 1.3v. So I ask all my overclocking to enthusiast friends hey on your apex with your g.skill kits on xmp 8000-8200mhz kits what is your SA VID running at? all of them replied with 1.3v and said auto. So I was like well it seems my MC and cpu like 1.375 let me set that again, now let's take my SA VID to 1.24, got instability and and an error fast. Set it to 1.25v low and behold I am now over 10hrs of running Karhu I believe its safe to say my 14900k can run 8000mhz cl38 2x24 xmp stable. If that outsourced bios team ASUS hired did a better job this probably would not have been the stupid adventure it was. I like the Teambroup kits because they run cooler on the XTREEM's then the PMIC has a thermal pad. The blacks run around 45c and the ARGB's run around 50c at 8000mhz xmp.

Last bit of fine tuning on the cpu for gaming, VT Curves with a negative offset, cpu and ram are running the way it should cooler, was able to reduce the SA down to 1.25v from 1.3v for ram stability.  Just waiting on fans for the AIO to reduce temps by about 3-5c more and yeah not much else I can do unless I want to go direct die. CPU scores is consistent on the CPU timespy test alone as I have tested everything adjusting voltages. System is finally fine tuned voltage wise for the game it was built around to run.
https://i.imgur.com/WT2Ty1i.png

cotter32
Cool, nice .  If I read right you got the stable 8000 Mhz RAM speed you were after .  Congrats.  Funny in a way because my old ASUS computer from 2007
runs at 800 Mhz .  That was high performance at the time
Noticed that the Cyberpunk benchmark takes a nice 14.6 Gb chunk of video memory .  My 3080 in my EVGA computer must be getting out of date .
It only has 10Gb .  Oh well, still works good .  Hope you are enjoying your 14900K, I really like mine since it has settled down, now it's just
fast, not a space heater .  Cheers !

Too The Moon !



Oh that is not a benchmark, that spot should be part of the benchmark of the game, it is the most demanding spot. Oh play the game for like 3-4hrs+ you will chew up anywhere from 17-18.Xgb of vram as assets are there in vram to be called upon for variety.

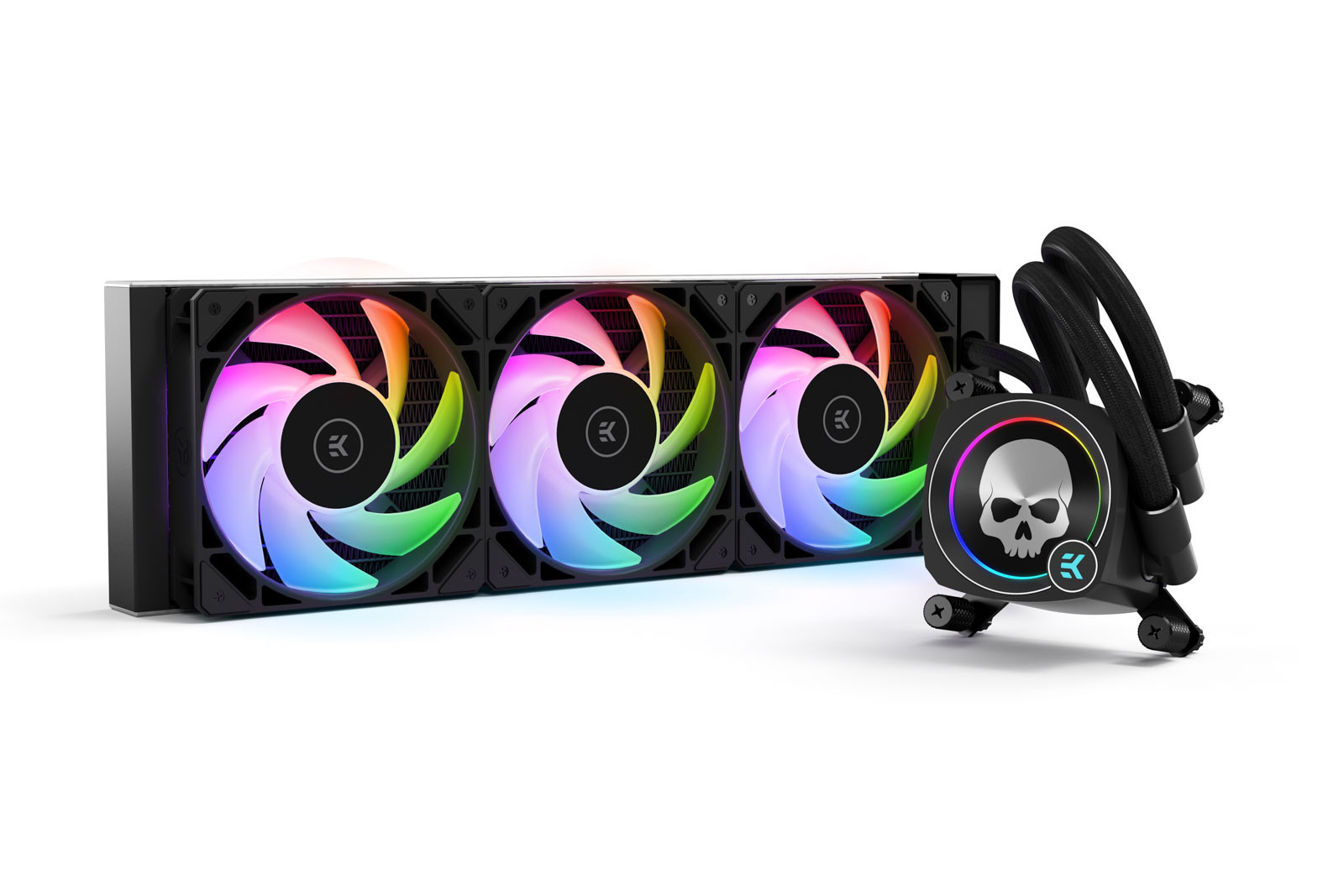

Oh, boy That scull logo is scare'n me :)
I built a new PC with some EKWB stuff,
since it is so highly recommended here .
I'm about to post about it now, but
first I wanted to give your latest mods
a big thumbs up

Too The Moon !



I will tidy up the wiring in the back at some point but only 4hrs of sleep in two days... yeah... time for some zzz's.

Also Honeywell PTM7950 pad has cured more. =D This is idle, regular use with /argb on to help keep the pad warmer for curing, gaming 40-60c, and benching 6X-74c on average. Preffered Cores locked at 57 I can do 59 but 200mhz is not going to mean jack in gaming, I do that to keep the Vcore and VID under 1.4v thanks to the voltage table and my chip needing 1.4v+ for 6ghz, The IA VR set to 1420. To make sure my cores are not voltage throttled by the latest bios the new microcode how it works had to set it ot that to at least hit 1.38Xv to keep my lower than average quality cpu happy and stable has a combined SP score of 94 if that tells you anything, IMC is solid so I can run 8000mhz CL38 with just a bump to my SA voltage has to be set manually for this ram kit.
