LockedEVGA GTX 580 Fanspeed Unlocker v1.1 Released - 1/13/2011

Page: < 12345.. > >> Showing page 3 of 11
Author
Johnny_Utah
CLASSIFIED Member
  • Total Posts : 4546
  • Reward points : 0
  • Joined: 2008/02/13 16:26:04
  • Status: offline
  • Ribbons : 8
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/01 17:10:55 (permalink)
boredgunner

Enstranged

Confirmed as well, reference GTX580 WILL go to 1.15V in MSI afterburner with this bios update! cheers!!


Hmm, you sure you don't have an SC card?  Or did this "Fan Unlocker" suddenly enable 1150 mV?  The GTX 580 has the same VRM as the GTX 480.  I'm gonna go all the way to California to EVGA's office and beg for moar voltage (1200 mV minimum).  Or I'll use another modded BIOS.


I live about 28 miles from EVGA headquarters.  Would a picket sign out front satisfy everyone's yearning for protest?







#61
adamlau
New Member
  • Total Posts : 2
  • Reward points : 0
  • Joined: 2006/01/15 20:34:32
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/01 18:56:16 (permalink)
Johnny_UtahI live about 28 miles from EVGA headquarters.  Would a picket sign out front satisfy everyone's yearning for protest?

I'm even closer :) . It appears the new fan curve has been altered (vs. the stock NVIDA curve) with the EVGA BIOS flash. Where I was once at 60C idle at 48% fan speed, I am now at 61C idle at 47% fan speed. I would have expected a higher fan speed to keep temps where they were originally. It also appears that the stock NVIDIA fan curve keeps the card cooler under idle and light use conditions. This is important in Linux as adaptive clocking can be disabled and the overclocked settings used 24/7 with no downclocking. Also, the EVGA curve ramps up slower in OC Scanner than the stock NVIDIA curve. I posted my initial impressions @ MKVTech...
post edited by adamlau - 2010/12/01 19:01:34
#62
Q56_Monster
CLASSIFIED Member
  • Total Posts : 3881
  • Reward points : 0
  • Joined: 2007/11/02 11:03:10
  • Location: Philly 'Burbs
  • Status: offline
  • Ribbons : 5
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/01 20:33:45 (permalink)
boredgunner

Enstranged

Confirmed as well, reference GTX580 WILL go to 1.15V in MSI afterburner with this bios update! cheers!!


Hmm, you sure you don't have an SC card?  Or did this "Fan Unlocker" suddenly enable 1150 mV?  The GTX 580 has the same VRM as the GTX 480.  I'm gonna go all the way to California to EVGA's office and beg for moar voltage (1200 mV minimum).  Or I'll use another modded BIOS.



Correct!  So we know what is possible, hehe

Mobo: Asus Rampage VI Extreme CPU: i9-7980XE
GPU: RTX 3090 KPE
HD: Samsung 1TB 970 Pro NVMe M.2
PSU: EVGA Supernova 1600 T2 OS: All of them
Monitor: 48" LG CX OLED  Other Cooling Fun: F1 Gemini/Tek-9 Fat LN2 | 12k BTU A/C to Chiller Conversion



#63
StevenDaniel
Superclocked Member
  • Total Posts : 177
  • Reward points : 0
  • Joined: 2010/07/20 14:17:01
  • Location: New York, Queens
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/02 15:08:14 (permalink)
Bad ram bro, get that card rma'ed

#64
Enstranged
Superclocked Member
  • Total Posts : 160
  • Reward points : 0
  • Joined: 2007/02/12 12:41:36
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/02 16:39:15 (permalink)
I was limited to 1.138V with my reference "stepped-up" card so I KNOW I have the reference.  Now I can push it to 1.15V in Msi.  Weird stuff but I'll take it!! My temps aren't too bad but I don't trust my 700w psu too much so still waiting for the AX to show up before I try to unleash 1ghz on air :p
#65
MVanden Berghe
Superclocked Member
  • Total Posts : 207
  • Reward points : 0
  • Joined: 2003/07/01 22:33:06
  • Status: offline
  • Ribbons : 2
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/04 11:29:37 (permalink)
Fanunlocker works great with my SLI 580 GTX.

Temps on idle are 36 and 30
Temps on load are 65 and 63

Fan speed at 70.

Haf X Blue
Asus P8Z68 Deluxe Generation 3
I7-2600 OC 4.5GHZ
Raystorm CPU Block, XSPC 360 Rad (3 X AP-15 Fans)
Scythe Kaze Master PRO Fan Controller
16GB Vengeance Memory
SLI EVGA 680 GTX with EK Nickel Plated Water Blocks along with Backplate
SSD M4 128GB
SSD M4 256GB (game files)
WD 1TB Black (storage)
Razer Black Widow Keyboard
Razer Black Mamba Mouse
Dell 2408FWP Monitor
Kingwin LZG 1000
Windows 7 Ultimate
#66
Enad1
SSC Member
  • Total Posts : 779
  • Reward points : 0
  • Joined: 2010/08/18 15:47:19
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/04 17:33:06 (permalink)
Awesome! Been waiting for this..

Nvidia GTX 2080 Ti FE
Intel i7 8700k - Swiftech Drivex3 360mm
ASUS Z390 Formula
32GB Corsair Dominator Platinum SE Contrast
Samsung 960 Pro 1tb
Samsung 950 Pro 256gb
Samsung 850 Evo 500gb
Samsung 840 Evo 256gb
Seasonic Prime Titanium 850w
Phanteks Evolv X
#67
coolqiujing
New Member
  • Total Posts : 38
  • Reward points : 0
  • Joined: 2008/07/31 23:40:38
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/05 02:32:53 (permalink)
GOOD JOB EVGA,

CPU: Intel core i7 x980  4.4 Ghz
Gigabyte X58A-UD9

4x EVGA GTX580 at 850   QUAL-SLI
G.Skill 24GB DDRIII-1333
two SATAIII SSDs in Raid
Three Gateway HDX3000s (2560*1600 each)
two 1500w Powersupplys (one dedicated for 4 VGA only)

#68
coolqiujing
New Member
  • Total Posts : 38
  • Reward points : 0
  • Joined: 2008/07/31 23:40:38
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/05 02:34:27 (permalink)
If you are giving stress to your voltage of card, you may need a second power supply in order to get clean power to your VGA

CPU: Intel core i7 x980  4.4 Ghz
Gigabyte X58A-UD9

4x EVGA GTX580 at 850   QUAL-SLI
G.Skill 24GB DDRIII-1333
two SATAIII SSDs in Raid
Three Gateway HDX3000s (2560*1600 each)
two 1500w Powersupplys (one dedicated for 4 VGA only)

#69
EMonteiro
New Member
  • Total Posts : 34
  • Reward points : 0
  • Joined: 2005/08/17 13:14:23
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/05 08:34:27 (permalink)
^ not everyone has 4 580's that they are going to max voltage on.  Those with 2 or 3 cards shouldnt need a second power supply. Given enough headroom.  Good quality power supply trumps over quantity of watts in a lot of cases.(obviously still given the rated power is enough for all your hardware)
#70
codeman
iCX Member
  • Total Posts : 275
  • Reward points : 0
  • Joined: 2010/10/25 19:58:33
  • Location: Toronto, Canada
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 11:40:14 (permalink)
Does this not unlock the fan to run as 'auto' without running the tuner software? I hate running extra "crap" for no reason ontop of Nvidia drivers. If anything, I use the Nvtuner that is a separate download from Nvidia alongside the drivers to make custom overclocked profiles.

Will this not allow 30% there? If so.... useless for most really.

Intel i7 980x @ 4.48Ghz   || 12GB Mushkin Blackline  ||  Gigabyte X58A-UD5
EVGA GTX580 with HeatKiller WB @ 900/2300 with 1.14 volts
2x 120GB Mushkin Callisto Deluxe SSD's in RAID0
1.5TB WD Green storage drive (excellent quiet drive with optimized vibration)
Xonar Essence ST to Harmon Kardon AMP w/Klipsch floor monitors
CaseLabs M*
Enermax Modu87+ 800watt PSU
27" Apple LED Cinema Display
Windows 7 x64 Ultimate


Mod Rig
#71
argh_sli
iCX Member
  • Total Posts : 385
  • Reward points : 0
  • Joined: 2010/08/12 17:49:48
  • Status: offline
  • Ribbons : 1
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 14:49:17 (permalink)
i want to update that, it looks like with the winter temps, i idle at 32% fan speed @ 34C with this awsome silverstone 90 degree motherboard rotated case.
i think EVGA should gift me GTX 580 for my awsome 30% fan speed idea.  i am so awsome!
#72
EVGA_JacobF
EVGA Alumni
  • Total Posts : 16946
  • Reward points : 0
  • Joined: 2006/01/17 12:10:20
  • Location: Brea, CA
  • Status: offline
  • Ribbons : 26
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 15:25:39 (permalink)
codeman

Does this not unlock the fan to run as 'auto' without running the tuner software? I hate running extra "crap" for no reason ontop of Nvidia drivers. If anything, I use the Nvtuner that is a separate download from Nvidia alongside the drivers to make custom overclocked profiles.

Will this not allow 30% there? If so.... useless for most really.


This is essentially a BIOS update, so no additional software is ran.


#73
codeman
iCX Member
  • Total Posts : 275
  • Reward points : 0
  • Joined: 2010/10/25 19:58:33
  • Location: Toronto, Canada
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 16:37:53 (permalink)
Ahhh, I love when I assume wrongly :P Good news.

Intel i7 980x @ 4.48Ghz   || 12GB Mushkin Blackline  ||  Gigabyte X58A-UD5
EVGA GTX580 with HeatKiller WB @ 900/2300 with 1.14 volts
2x 120GB Mushkin Callisto Deluxe SSD's in RAID0
1.5TB WD Green storage drive (excellent quiet drive with optimized vibration)
Xonar Essence ST to Harmon Kardon AMP w/Klipsch floor monitors
CaseLabs M*
Enermax Modu87+ 800watt PSU
27" Apple LED Cinema Display
Windows 7 x64 Ultimate


Mod Rig
#74
cramsay
New Member
  • Total Posts : 29
  • Reward points : 0
  • Joined: 2005/06/24 11:18:24
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 22:05:07 (permalink)
Big problem flash my gtx 580 OC in sli now shows core 50 shaders 101 and mem 135?  Help shows same in e-leet and cpuid.  Something wrong in these two programs? Does clock properly in EVGA Precision. I used file you provided and screws up info shows the above problem.
post edited by cramsay - 2010/12/07 22:07:15
#75
EVGA_JacobF
EVGA Alumni
  • Total Posts : 16946
  • Reward points : 0
  • Joined: 2006/01/17 12:10:20
  • Location: Brea, CA
  • Status: offline
  • Ribbons : 26
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 22:18:59 (permalink)
This is correct, it is running in 2D mode. It should clock up when you go into a 3d application.


#76
cramsay
New Member
  • Total Posts : 29
  • Reward points : 0
  • Joined: 2005/06/24 11:18:24
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/07 23:59:40 (permalink)
Just weird that showed 3d clocks until I used fan unlocker now shows 2d core clocks instead of 3d.  At least its normal.  Thanks Jacob for fast response.  I have backplates and high airflow brackets coming.
#77
sindhusaugat
New Member
  • Total Posts : 3
  • Reward points : 0
  • Joined: 2008/07/07 18:57:26
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/08 11:30:18 (permalink)
Hey Jacob, thanks for this update but before I go through with it I wanted to get it straight so I do not screw my cards up.

My current setup has GF 580 in tri - sli. My 580 SC edition is primary and the other two are non SC versions so when I sync the cards in Precision, they take the high clock speed/settings of my primary SC card.

Having said that , which file would you suggest I use for flashing and how do I go about it. Do I flash all three in SLI or should I pull em apart and do it one by one?

Thank you.!



#78
roller11
SSC Member
  • Total Posts : 995
  • Reward points : 0
  • Joined: 2007/01/30 12:35:52
  • Status: offline
  • Ribbons : 2
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/08 13:21:48 (permalink)
codeman

Will this not allow 30% there? If so.... useless for most really.
 Given the misconception that there is a "default" fan speed,  your question is valid.  However, there is no default fan speed, there is a default profile, and the profile sets the fan speed as a function of temperature.  The default 40% to 85% profile has not been changed, so you will never see  30%.  The value of the update is that you can decrease the magnitude of the hissing sound of the fan if you so choose.  There's no logical reason to have any restrictions at all, but 30% is less bad than 40%.  I just hope that with the release of Kepler next year, EVGA will be proactive and fix the bios before they release their cards instead of waiting for people to complain.  This would set EVGA apart from all other brands and thus increase sales.

#79
oOfuZedOo
New Member
  • Total Posts : 26
  • Reward points : 0
  • Joined: 2010/07/30 04:14:56
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/10 13:40:57 (permalink)
Doesn't work for me. Just telling me "No display adapters were found that are compatible with this update"

Running 2 GTX 580 BO in SLI


#80
EVGA_JacobF
EVGA Alumni
  • Total Posts : 16946
  • Reward points : 0
  • Joined: 2006/01/17 12:10:20
  • Location: Brea, CA
  • Status: offline
  • Ribbons : 26
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/10 15:00:50 (permalink)
oOfuZedOo

Doesn't work for me. Just telling me "No display adapters were found that are compatible with this update"

Running 2 GTX 580 BO in SLI

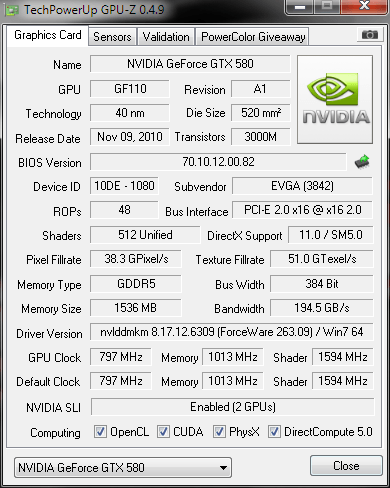

Can you take a GPU-Z screenshot?


#81
oOfuZedOo
New Member
  • Total Posts : 26
  • Reward points : 0
  • Joined: 2010/07/30 04:14:56
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/10 15:18:34 (permalink)



#82
EVGA_JacobF
EVGA Alumni
  • Total Posts : 16946
  • Reward points : 0
  • Joined: 2006/01/17 12:10:20
  • Location: Brea, CA
  • Status: offline
  • Ribbons : 26
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/10 15:27:05 (permalink)
You are running the update for 1582 right?


#83
oOfuZedOo
New Member
  • Total Posts : 26
  • Reward points : 0
  • Joined: 2010/07/30 04:14:56
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/10 15:29:59 (permalink)
I'm running "v1.0  015-P3-1582/1583-XX - EVGA GeForce GTX 580 Superclocked".

There is just the folder "1582" in it - so "yes"

post edited by EVGATech_MattM - 2014/08/08 05:30:08


#84
ty_ger07
Insert Custom Title Here
  • Total Posts : 21207
  • Reward points : 0
  • Joined: 2008/04/10 23:48:15
  • Location: traveler
  • Status: offline
  • Ribbons : 270
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/10 17:36:08 (permalink)
roller11
Given the misconception that there is a "default" fan speed,  your question is valid.  However, there is no default fan speed, there is a default profile, and the profile sets the fan speed as a function of temperature.  The default 40% to 85% profile has not been changed, so you will never see  30%.  The value of the update is that you can decrease the magnitude of the hissing sound of the fan if you so choose.  There's no logical reason to have any restrictions at all, but 30% is less bad than 40%.


Close, but not quite.  Specifically:


The default 40% to 85% profile has not been changed, so you will never see  30%.


That isn't true.  The default profile has been changed.  That is what this BIOS update addresses.  The video card BIOS does not have more than one fan profile in it.  The BIOS only has one profile programmed and therefore it is not possible to change the profile while also retaining the old profile.  It replaces the default profile with a new profile which allows for 30% to 100%.  Now, the new profile is similar to the original profile so that the fan speed at various temperatures will be similar to what they were before the update.  Simply speaking, if you plotted this profile on a piece of graph paper as well as the default profile, the two would be similar in regards to profile and ramp rate.  But this certainly does not mean that you will never see 30%.  If the card is cool enough, the fan will drop as low as 30%.  Now, this will probably never happen unless you are ducting air conditioned air straight into the video card or have a very low ambient air temperature for whatever other reason.  To say that it isn't possible to see 30% isn't true.  On top of that, you will see the fan go below 40% -- dropping down towards 30% -- whereas before the fan would have never gone below 40%.

I do see my fan speed drop down in the 35% range during extended 2D load periods.

Also:

There's no logical reason to have any restrictions at all, but 30% is less bad than 40%.


This is also not true.  There is a logical reason to have fan speed restrictions.  All PWM fan controllers have built-in restrictions.  The restriction is incorporated to prevent the fan from stalling.   Once a fan stalls, it usually takes a considerably higher duty cycle to make it unstall.

Let me make this analogy.  First, we must assume that EVGA has determined that the fan won't stall at 30% (otherwise they wouldn't have released this update).  Let's say that the update allowed for unrestricted fan operation.  Lets say that your video card is sitting at 2D load for an extended time and the fan speed drops to 15% and then the fan stalls.  No big deal, right?  (That's what you apparently think since you say there is no logical reason to have restrictions at all)  You assume that as the card heats up, the duty cycle will increase and that the fan will surely start spinning again by 30% since we know it won't stall at 30%.  But this isn't the case.  Once the fan stalls, it may not unstall until 60% (for analogy sake) fan speed.  This would put the user on edge since he would enter a 3D load, see the GPU temperature climb rapidly while the fan was still stalled, and then all the sudden hear the fan go from silent to quite loud, and then see the GPU temperature plummet, and then hear the video card fan become much more quiet again.  Do you think that this operation may cause the customer to think his video card was broken?  Therefore, restrictions exist.

Don't reply saying "but the fan speed would never go as low as 15% due to GPU temperature".  Sure it could: if you decided that the GPU should idle at 80c while 2D idle, the fan speed may drop as low as 15%.
post edited by ty_ger07 - 2010/12/10 18:45:34

ASRock Z77 • Intel Core i7 3770K • EVGA GTX 1080 • Samsung 850 Pro • Seasonic PRIME 600W Titanium
My EVGA Score: 1546 • Zero Associates Points • I don't shill

#85
koshen
New Member
  • Total Posts : 1
  • Reward points : 0
  • Joined: 2010/12/04 04:51:52
  • Status: offline
  • Ribbons : 0
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/11 07:51:55 (permalink)
oOfuZedOo

Doesn't work for me. Just telling me "No display adapters were found that are compatible with this update"

Running 2 GTX 580 BO in SLI


Hello everybody.
I'm french, happy to join you on this forum

Same problem here. I have 2 GTX 580 BO in SLI. (on EVGA X58 Classified 3 way SLI motherboard, windows7 x64, i7 975 processor)
"v1.0  015-P3-1582/1583-XX - EVGA GeForce GTX 580 Superclocked".  decompressed in c:\install.
So, when i click on "update", same message in DOS windows : "No display adapters were found that are compatible with this update"
Without antivirus, firewall, and others programs, I tried too with only one GTX 580 BO on motherboard, same problem.


post edited by EVGATech_MattM - 2014/08/08 05:30:35

I7 975 @ 4.4GHz + Thermalright True Cooper - EVGA X58 Classified 3 sli - 2x EVGA GTX 580 SLI Black Ops @ GPU 865mhz / Memory 2200mhz - 6GB Trident @1800 mhz / 9-9-9-24 - 1t - Corsair 800D
#86
EVGA_JacobF
EVGA Alumni
  • Total Posts : 16946
  • Reward points : 0
  • Joined: 2006/01/17 12:10:20
  • Location: Brea, CA
  • Status: offline
  • Ribbons : 26
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/11 09:28:09 (permalink)
Ok, I think I know where the issue is.

For you guys who have a Black Ops card, and are not able to apply the update, send me a mail at jacobf@evga.com.


#87
mwparrish
CLASSIFIED Member
  • Total Posts : 3278
  • Reward points : 0
  • Joined: 2009/01/08 15:27:28
  • Status: offline
  • Ribbons : 23
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/11 09:56:24 (permalink)
roller11
The value of the update is that you can decrease the magnitude of the hissing sound of the fan if you so choose.


it doesn't hiss... even at 100%... it whooshes...

big difference...

amd cards hiss, ftl.

Intel Core i7 3930K - 4.7 GHz  |  ASUS Rampage IV Extreme  |  8x4GB G.Skill Ripjaws Z DDR3-2133
2x EVGA GTX 780 Ti SC  |  BenQ XL2420TX - 1920x1080 120Hz LCD  |  Logitech G9x  |  Corsair Vengeance 1500
5x Crucial 128GB SSD  |  LG BD-R Drive  |  Danger Den Torture Rack  |  Enermax Galaxy EVO 1250W


#88
roller11
SSC Member
  • Total Posts : 995
  • Reward points : 0
  • Joined: 2007/01/30 12:35:52
  • Status: offline
  • Ribbons : 2
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/11 15:14:55 (permalink)
ty_ger07
The default profile has been changed.
I do see my fan speed drop down in the 35% range during extended 2D load periods.
Right you are.  I assumed that because there is no reason to change the default profile, EVGA didn't.  The result is that the fan will generate even less noise.   Thanks for pointing out my error.
There's no logical reason to have any restrictions at all, but 30% is less bad than 40%.



This is also not true.   There is a logical reason to have fan speed restrictions.  All PWM fan controllers have built-in restrictions. The restriction is incorporated to prevent the fan from stalling.   Once a fan stalls, it usually takes a considerably higher duty cycle to make it unstall.
There are at least two obvious flaws in your logic.  First, like many others, you are under the delusion that 0% means 0 RPM.  The truth is, 0% means the fan operates at it's designed-in minimum RPM which can be anything.  There's an graph  of this on the TIgerdirect site (Golf 140mm).  To prove this, connect your PWM fan to the PWM controller on your mobo and set it to 0%.  The 580 fan spins at 950RPM.  If you were right, then every PWM fan would be rated over a range of  0 RPM to it's maximum RPM.  But if you look at the specs on PWM fans, the minimum speed is never zero.
Let's say that the update allowed for unrestricted fan operation.  Lets say that your video card is sitting at 2D load for an extended time and the fan speed drops to 15% and then the fan stalls.  No big deal, right?
Exactly right.  No big deal because the GPU is cool.  The fan need not turn AT ALL if the GPU is cool.
You assume that as the card heats up, the duty cycle will increase and that the fan will surely start spinning again by 30% since we know it won't stall at 30%.
I assume nothing of the sort.  It won't start up again due to  built-in hysteresis of the profile.  You grossly underestimate me.
Once the fan stalls, it may not unstall until 60% (for analogy sake) fan speed.  This would put the user on edge since he would enter a 3D load,
Your second error.   97C is 'on the edge', 60% fan occurs at 65C, well within the safe operation envelope.
see the GPU temperature climb rapidly while the fan was still stalled, and then all the sudden hear the fan go from silent to quite loud, and then see the GPU temperature plummet, and then hear the video card fan become much more quiet again.  Do you think that this operation may cause the customer to think his video card was broken?  Therefore, restrictions exist.
Third mistake, you're assuming that the fan minimum would force a wild profile.  In fact, the fan minimum can exist seperate and apart from  the crazy profile you suggest.  But even if your example was remotely possible, (which I disproved) all you would have shown is end users are capable of bad judgement, no reflection on the card.  In other words, your scenario is technically impossible and even if it happened, it would have absolutely no negative impact on the card.  Therefore, no logical reason to have any restrictions on minimum fan speed.
Don't reply saying "but the fan speed would never go as low as 15% due to GPU temperature".  Sure it could: if you decided that the GPU should idle at 80c while 2D idle, the fan speed may drop as low as 15%.
Sure it could, so what?  80C is well within the safe operational limits of the card, you're just reinforcing my point.

#89
ty_ger07
Insert Custom Title Here
  • Total Posts : 21207
  • Reward points : 0
  • Joined: 2008/04/10 23:48:15
  • Location: traveler
  • Status: offline
  • Ribbons : 270
Re:EVGA GTX 580 Fanspeed Unlocker v1.0 Released 2010/12/11 17:04:00 (permalink)
roller11

This is also not true.   There is a logical reason to have fan speed restrictions.  All PWM fan controllers have built-in restrictions. The restriction is incorporated to prevent the fan from stalling.   Once a fan stalls, it usually takes a considerably higher duty cycle to make it unstall.
There are at least two obvious flaws in your logic.  First, like many others, you are under the delusion that 0% means 0 RPM.  The truth is, 0% means the fan operates at it's designed-in minimum RPM which can be anything.  There's an graph  of this on the TIgerdirect site (Golf 140mm).  To prove this, connect your PWM fan to the PWM controller on your mobo and set it to 0%.  The 580 fan spins at 950RPM.  If you were right, then every PWM fan would be rated over a range of  0 RPM to it's maximum RPM.  But if you look at the specs on PWM fans, the minimum speed is never zero.


I can not comprehend your logic for most of the items in the rest of your reply.  First, I will start with this quote which I can comprehend.  I assume that your missunderstanding on this issue may account for your missunderstanding on the rest of the issue and may account for my inability to follow the rest of your logic.

I need to explain to you what the % stands for.  You state that at 0%, the fan may run 950RPM.  No.

When you made that statement, you assumed that the fan controller circuit had a built in restriction.  You argued my point for me without even knowing it.  Without any restrictions, 0% equals 0 RPM.  What I am speaking of is the actual physical operation of the PWM circuit which controls the fan in a hypothetical situation where no restrictions exist (which you argue shouldn't exist).  If no restrictions existed, 0% would equal 0 RPM.  The percentage is a percent duty cycle (not percent RPM).  PWM operates on duty cycle and therefore 0% duty cycle can not physically create anything other than 0 RPM fan speed since no power would go to the fan at 0% duty cycle.

Now, try to figure out your argument again in this perspective.  Your argument makes no sense to me and therefore I can't comment on it.


If you want, when I return home in two weeks, I can physically show you what I am speaking of in a circuit with no built in restrictions.  If you mess around with electronics, like me, you find out these truths.  Your conclusion that 0% does not equal 0 RPM is based on your lack of experience with a controller which has no built in restrictions.

I have stalled fans before as this has been an interest of mine in the past.  I have noted that a fan can operate at very low duty cycle, but that once it stalls, the duty cycle % required to get it back in motion was much higher than the duty cycle required to keep it in motion when not stalled.  I can record this for you if you wish.

But if you will take my word on it, understand that PWM controller circuits have built in restrictions to prevent stalls.  Preventing a stall prevents unexpected operating conditions from existing and thus wild changes in fan speed and temperature of the item which the fan is cooling will not occur  -- which is the expectation of the consumer.



Let's say that the update allowed for unrestricted fan operation.  Lets say that your video card is sitting at 2D load for an extended time and the fan speed drops to 15% and then the fan stalls.  No big deal, right?
Exactly right.  No big deal because the GPU is cool.  The fan need not turn AT ALL if the GPU is cool.


Well, yes, it would be fine for the fan to stall when the GPU was cool, but what would not be fine is the behavior of the fan and GPU core temperature fluctuation once the card entered back into 3D load.



Would this stalled fan operation be acceptable to the consumer?
post edited by ty_ger07 - 2010/12/11 17:37:09
#90
Page: < 12345.. > >> Showing page 3 of 11
Jump to:
  • Back to Mobile
