[EDIT: See latest post at bottom!] So I managed to kill my previous motherboard in an overclocking adventure... ...well...I mean...not quite. I'd decided my CPU was too hot, so I wanted to remove the HSF and clean the surfaces off and re-apply the thermal paste. However, the Cooler Master HSF I was using was impossible to remove! The HSF was attached via a nut-and-bolt system through the motherboard mounting holes, except the nuts had very smooth sides and no grooves to use a screwdriver with. So I had to use pliers, and twisting, and bending, and... ...well, it was ugly. And bang up the motherboard. Might have still worked, but I was, like, Frack it! Didn't like that system, anyway!  And off we go with a new one!  Check out that cable management, though! Mind-blowingly bad, isn't it? LOL! I have NO IDEA how folks manage to get so much cleaner/tighter cable management on their case interiors. I wonder if they have the same number of hard drives I do? That's easily the most challenging thing to get cable management under control for...I've got 5 hard drives and the optical drive, so...loooootta wires going everywhere! That said, I definitely DO know how to do cable hiding...the outside of the case is quite tied-down, and cables behind the system are all wrapped and such for a set of pretty clean lines, overall.  I just got no idea how you guys manage it all on the *inside* of the system! Less hard drives? Bigger cases? I have no idea! Oh, and I swapped out the Blu-Ray player for something shinier.  Other major changes from the previous system include: Motherboard (obviously): Biostar TP67B+ -> Asus P8Z68-V CPU cooling (again, obviously): Coolermaster Hyper N 520 (air) -> Corsair H70 (water) ...and while I was at it, I figured what the heck, and so... CPU: Intel Core i5 2400 -> Intel Core i7 2600K PSU: Corsair 'Builder' series CX500 -> Corsair 'Enthusiast' series TX750 With this CPU's oomph, motherboard support for it, and new PSU...this system is built for SLI! Don't have that, yet - saving up some eVGA Bucks by Folding away - but Real Soon, Now (tm)!! Until, then...it's pretty impressive, still! Nice card!
post edited by xanderf - 2012/01/07 17:52:03

|
Max killz
CLASSIFIED Member
- Total Posts : 3746
- Reward points : 0
- Joined: 2009/12/24 22:42:54
- Status: offline
- Ribbons : 5
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/06 22:47:28
(permalink)
a lot of us have full ATX cases so we can route the cables behind the mobo tray like so (i've since cleaned it up)  i went from a mid tower case where it was a HUGE mess  to a full HAF932 case which looked better  that is till i upgraded to SLI
I was made a cannibal to fix problems like you
|
loveha
Omnipotent Enthusiast
- Total Posts : 10302
- Reward points : 0
- Joined: 2009/09/26 01:51:22
- Location: Beulah Michigan
- Status: offline
- Ribbons : 65
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/06 22:50:22
(permalink)
☄ Helpful
That case was poorly designed for cable management. Part of your problem. It is why the Antec 300 is not recommended. Also your PSU is not modular, that helps a lot. Zip Ties/Cable Ties of some sort is your best option and try and hide as much as possible.
The CPU Power cable can be run underneath the GPU on the left. I know it is possible. I do it to ALL of my builds. As far as the rest of your cables, well you case is the limiting factor.
Other than that, looks good.
Case - Phanteks Enthoo Evolv XMobo - EVGA X570 FTWCPU - AMD Ryzen 9 5900XRAM - 32GB Trident Z Royal 3600MHz 14-14-14-34GPU - EVGA RTX 3080 Ti FTW3 Ultra GamingPSU - Seasonic Prime TX-1000Heatkiller IV CPU Waterblock / Heatkiller V GPU WaterblockHeatkiller V EBC Active Backplate / Two Heatkiller Rad 360 L Six Noctua NF-A12x25 / Heatkiller D5 Pump
|
xanderf
CLASSIFIED Member
- Total Posts : 2068
- Reward points : 0
- Joined: 2004/04/26 17:16:42
- Location: Cleveland, OH
- Status: offline
- Ribbons : 36
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/06 22:52:08
(permalink)
Max killz
a lot of us have full ATX cases so we can route the cables behind the mobo tray like so (i've since cleaned it up) Ah, I think I see a key difference - in your full-tower system, the hard drives are mounted 'sideways', while in the mid-tower I have, they are 'front to back', so no matter *how* clean I try to tie the cables down, I'm going to have a pile of wires sticking out their backs and into the main space of the case. With them sideways like that...yeah, you can route them behind the mobo tray and it works way better! I once did have a case that I realize I could have done that on, now - an ancient nForce2 system in a Thermaltake tower...  ...but I think even in that one, I mounted the 'sideways' drives in with the cables 'sticking out' instead of behind the mobo tray! LOL!
|
xanderf
CLASSIFIED Member
- Total Posts : 2068
- Reward points : 0
- Joined: 2004/04/26 17:16:42
- Location: Cleveland, OH
- Status: offline
- Ribbons : 36
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/06 22:59:21
(permalink)
loveha The CPU Power cable can be run underneath the GPU on the left. I know it is possible. I do it to ALL of my builds. As far as the rest of your cables, well you case is the limiting factor.
I think I *may* have tried that...will have to tinker with that some to see what is possible, but I seem to vaguely recall that the X-Fi was actually the limiting factor. Looking at it more closely, though...hmmm. That just might work. And it would definitely be a big step towards cleaning up the look a bunch, even if the cabling coming off the drives proves impossible to really deal with!
|
z3r0t0l0rence
Omnipotent Enthusiast
- Total Posts : 8422
- Reward points : 0
- Joined: 2009/10/08 10:14:51
- Location: Arizona
- Status: offline
- Ribbons : 20
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/06 23:29:33
(permalink)
Damn that is pretty bad. But I have seen worse.
i7 930 OC 4.21 EVGA E758 GSkill 12GB Evga GTX 780 SC 2x Kingston 240 Raid 0 2x Seagate 4TB
|
Alacran72
CLASSIFIED Member
- Total Posts : 2127
- Reward points : 0
- Joined: 2011/03/18 15:07:31
- Location: California
- Status: offline
- Ribbons : 6
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/06 23:35:41
(permalink)
|
zophar
CLASSIFIED Member
- Total Posts : 4749
- Reward points : 0
- Joined: 2008/08/26 09:48:56
- Location: KC,MO
- Status: offline
- Ribbons : 26
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 05:35:03
(permalink)
As far as the cable management, even alot of the new mid-tower designs are starting to incorprate cable managment features like the full tower cses have been doing for a while now. Also congrats on the upgrade. I'm sure you'll love it.
|
Bruno747
CLASSIFIED Member
- Total Posts : 3773
- Reward points : 0
- Joined: 2010/01/13 11:00:12
- Location: Looking on google to see what Nvidia is going to o
- Status: offline
- Ribbons : 5
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 09:56:58
(permalink)

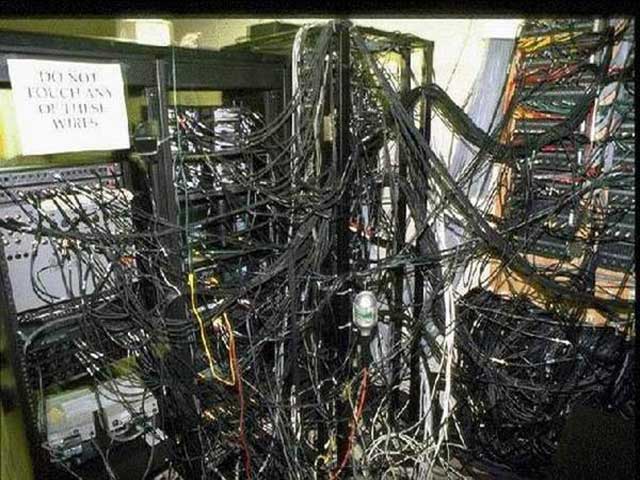

Uh guys, I think the pic listed above has nothing on this....
X399 Designare EX, Threadripper 1950x, Overkill Water 560mm dual pass radiator. Heatkiller IV Block Dual 960 EVO 500gb Raid 0 bootable, Quad Channel 64gb DDR4 @ 2933/15-16-16-31, RTX 3090 FTW3 Ultra, Corsair RM850x, Tower 900
|
Louiiis
SSC Member
- Total Posts : 822
- Reward points : 0
- Joined: 2011/01/18 08:04:20
- Location: United Kingdom
- Status: offline
- Ribbons : 0
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 10:31:00
(permalink)
^ Looks more like spaghetti than wires
Intel i7-2600k @ 4.6GHz 1.32v || Corsair H70 W/ Gentle Typhoon AP-15 || Corsair Vengeance 8Gb 1600MHz 9-9-9-24 1.5v || EVGA GTX 580 SC SLI || Crucial C-300 64Gb SSD + Western Digital Caviar Black 6Gbp/s 1Tb HDD || ASUS Xonar Essence STX W/ Beyerdynamic DT 770 Pro 80Ω || Corsair AX 1200W || Asus Maximus IV Extreme || CoolerMaster HAF-X W/ 4xCM200mm fans
|
beamer368
Superclocked Member
- Total Posts : 151
- Reward points : 0
- Joined: 2011/01/26 09:52:50
- Location: St Louis Mo
- Status: offline
- Ribbons : 0
|
rjohnson11
EVGA Forum Moderator
- Total Posts : 84734
- Reward points : 0
- Joined: 2004/10/05 12:44:35
- Location: Netherlands
- Status: offline
- Ribbons : 86
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 11:05:15
(permalink)
If you don't want another chassis with better cable management then you can take a drill and a dremel and start making your own chassis modded routing holes provided there is enough space behind the right cover to put all the cables.
|
BigH3017
FTW Member
- Total Posts : 1037
- Reward points : 0
- Joined: 2011/06/22 18:52:26
- Status: offline
- Ribbons : 3
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 11:46:26
(permalink)
yeah and the reason there is no screw holes on the back of the n520 is because there is a specific adapter you use to get the bolts on and off, or you can use a wrench, either way too late for that
|
xanderf
CLASSIFIED Member
- Total Posts : 2068
- Reward points : 0
- Joined: 2004/04/26 17:16:42
- Location: Cleveland, OH
- Status: offline
- Ribbons : 36
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 17:47:54
(permalink)
A few pieces of good advice in this thread motivated me to take another whack at the cable management. Indeed, as [link=showprofile.aspx?memid=738685]loveha[/link] noted, the CPU power cable could be run under the video cards. It was a *bit* trickier getting it under the X-Fi, owing to some caps on the motherboard being right in the spot under the card the line would run past...but it did fit. But running many more of the power supply lines right out the back of the case from the buttom, and then running them back in higher up...rather than letting them run directly to the device they are plugged into...also cleaned up a lot of things. Unfortunately, there is only so much that could be done. As noted, the lack of a modular PSU really hurts this effort. I could take out at least 2 of the major chains of adapters coming out of the PSU, if it had been modular, as I don't need them. And the hard drive bays really do mean that the drives leave their junk 'dangling' into the case. Annoying. Some flatter adapters (rather than power and SATA cables that need to be plugged in 'straight' in or at odd right angles) would also help. STILL! I think this is an improvement - no?
|
Max killz
CLASSIFIED Member
- Total Posts : 3746
- Reward points : 0
- Joined: 2009/12/24 22:42:54
- Status: offline
- Ribbons : 5
|
loveha
Omnipotent Enthusiast
- Total Posts : 10302
- Reward points : 0
- Joined: 2009/09/26 01:51:22
- Location: Beulah Michigan
- Status: offline
- Ribbons : 65
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 19:09:06
(permalink)
Looks much better. I spend more time with Cable management, than I do when assembling the rig.
Then again, my case is HUGE so cable management is super easy.
Case - Phanteks Enthoo Evolv XMobo - EVGA X570 FTWCPU - AMD Ryzen 9 5900XRAM - 32GB Trident Z Royal 3600MHz 14-14-14-34GPU - EVGA RTX 3080 Ti FTW3 Ultra GamingPSU - Seasonic Prime TX-1000Heatkiller IV CPU Waterblock / Heatkiller V GPU WaterblockHeatkiller V EBC Active Backplate / Two Heatkiller Rad 360 L Six Noctua NF-A12x25 / Heatkiller D5 Pump
|
Norton850
New Member
- Total Posts : 57
- Reward points : 0
- Joined: 2007/08/11 23:07:07
- Status: offline
- Ribbons : 0
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 20:06:31
(permalink)
We must have gone to the same cable management school.
|
xanderf
CLASSIFIED Member
- Total Posts : 2068
- Reward points : 0
- Joined: 2004/04/26 17:16:42
- Location: Cleveland, OH
- Status: offline
- Ribbons : 36
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/07 20:06:59
(permalink)
Case size does seem like it would make a huge difference - just being able to rotate the drives 90 degrees (sideways instead of front to back) would make all the difference in the world. Cables would very nearly be entirely all hidden, then!
|
Simba123
CLASSIFIED Member
- Total Posts : 2844
- Reward points : 0
- Joined: 2011/05/10 23:15:21
- Location: Australia
- Status: offline
- Ribbons : 14
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 00:13:27
(permalink)
much improvement! I'll give you a +1 for that effort.
|
HeThing
CLASSIFIED ULTRA Member
- Total Posts : 6764
- Reward points : 0
- Joined: 2010/05/11 07:45:49
- Location: 6F4-72Y-6A8J <-- My Affiliate Code :D
- Status: offline
- Ribbons : 42
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 02:49:54
(permalink)
Simba123
much improvement!
I'll give you a +1 for that effort.
second that.. +1..!
|
rjohnson11
EVGA Forum Moderator
- Total Posts : 84734
- Reward points : 0
- Joined: 2004/10/05 12:44:35
- Location: Netherlands
- Status: offline
- Ribbons : 86
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 03:17:45
(permalink)
Much better effort that in the original post that is for sure.
|
jeffgoatley
iCX Member
- Total Posts : 280
- Reward points : 0
- Joined: 2011/01/16 18:31:48
- Location: Louisville, KY
- Status: offline
- Ribbons : 1
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 06:48:37
(permalink)
Great job!! I'll +1 ya...
Win 7 64-bit - Corsair Obsidian Series 800D with Extended Water Cooling Case - Intel Core I7 2700k @ 4.40GHz - Asus Maximus IV Extreme-Z - 16G's G.Skill DDR3-2133 11-11-11-13 1.6v - Corsair HX1000i 80+ Platinum PSU - 2 EVGA GTX 780's in SLI with Hydro Copper-1 Quad & 1 Triple Rad with 2 Swiftech - MCP655 Pumps 1 Bitpower 150 Reservoir - 1 Bitpower 250 Reservoir - 1 Swiftech Apogee for CPU - 4 Intel SSD 320 Sata II 120Gb in Raid 0 - 3 Acer G235h Monitors - 1 Asus VG248QE Logitech G910 Keyboard - Logitech G502 Laser Mouse - Creative Sound Blaster Z & Sennheiser PC Headset 350 SE - 5.1 Panasonic A/V Receiver - Polk Audio Speakers & Sub Woofer www.jeffgoatley.com/mymodrig
|
voodoo do-er
CLASSIFIED Member
- Total Posts : 4418
- Reward points : 0
- Joined: 2011/09/02 10:20:58
- Location: 1934~2012 Eduard Khil
- Status: offline
- Ribbons : 9
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 12:30:28
(permalink)
thats much better
but I sure you can still do better
|
xanderf
CLASSIFIED Member
- Total Posts : 2068
- Reward points : 0
- Joined: 2004/04/26 17:16:42
- Location: Cleveland, OH
- Status: offline
- Ribbons : 36
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 12:57:58
(permalink)
voodoo do-er
thats much better
but I sure you can still do better
Looking at it, I do still see something of a rat's nest. Still, I'm really unsure how much more could be done. Note how many drives I've got in there...  This is partially exacerbated by the optical drive taking up the ENTIRE width of the case - it's flat on the back of the case, up there, so you cannot run any wires that go to it (or the case's front panel devices right above it) "behind" (really 'beside') the thing...they have to be in the main space of the case to plug in. Pretty much all the remaining cabling visible is related to the drives or the case's front panel devices (which only barely reach to the motherboard headers as it is) Without buying a set of different (flatter) SATA cables, I'm not really sure what else could be done for it...
|
{uZa}DOA
CLASSIFIED Member
- Total Posts : 3757
- Reward points : 0
- Joined: 2008/12/07 07:24:42
- Location: My Affiliate Code: 7B5PL3G722
- Status: offline
- Ribbons : 15
|
xanderf
CLASSIFIED Member
- Total Posts : 2068
- Reward points : 0
- Joined: 2004/04/26 17:16:42
- Location: Cleveland, OH
- Status: offline
- Ribbons : 36
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/08 15:59:26
(permalink)
I do have at least one more idea...
My intent is to SLI the 560 Tis, which, if I leave the X-Fi where it is, I *think* will block the fan for the lower 560.
Now, I've got a '1x' PCI-E slot just above the top 560 (what is now my only 560). If I move the X-Fi up there, than the case's front panel audio cable running to it I could pull tight across the top of the 560, and run it behind the drive bay area, there (letting me run it down the side over the optical drive slot, kinda).
That might work, and would eliminate another cable from view. And I may have to do it, anyway, to make sure that airflow to the (future) lower 560 Ti is not blocked.
|
direraptor22
CLASSIFIED ULTRA Member
- Total Posts : 5537
- Reward points : 0
- Joined: 2008/10/14 00:35:57
- Location: Optimal cruise altitude!
- Status: offline
- Ribbons : 16
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/10 03:58:25
(permalink)
I'll have to say, that's some pretty good cable management despite the Antec 300 case. I've owned one in the past and it was a disaster.
 “The fascination of flight can't be expressed with words. But it really lies beyond the capabilities of human endeavor. Once you've experienced it, you'll never be able to forget it.” - Friedrich Oblessor
|
SAYSteez
iCX Member
- Total Posts : 306
- Reward points : 0
- Joined: 2009/01/13 17:03:42
- Location: California
- Status: offline
- Ribbons : 1
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/10 04:39:59
(permalink)
xanderf
I do have at least one more idea...
My intent is to SLI the 560 Tis, which, if I leave the X-Fi where it is, I *think* will block the fan for the lower 560.
Now, I've got a '1x' PCI-E slot just above the top 560 (what is now my only 560). If I move the X-Fi up there, than the case's front panel audio cable running to it I could pull tight across the top of the 560, and run it behind the drive bay area, there (letting me run it down the side over the optical drive slot, kinda).
That might work, and would eliminate another cable from view. And I may have to do it, anyway, to make sure that airflow to the (future) lower 560 Ti is not blocked.
You should be fine if you pop another 560 in there, it shouldn't block the fan at all.
 Specs updated 2016
|
Arctic. Light
FTW Member
- Total Posts : 1023
- Reward points : 0
- Joined: 2010/05/05 16:15:07
- Location: Westhampton NY
- Status: offline
- Ribbons : 2
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/10 04:49:18
(permalink)
I got my girlfriend the Corsair 650D....and just gotta say....for a mid tower case...it is the cleanest looking case for cable managment...i have ever seen....almost made me want to steal it and give her my antec 1200...but then i realized it would be way to full :p
Confused PC x58FTW3/4.4ghz Xeon-X5660/12GB Gskill&Patriot/EVGA RTX 270/AX1200/Aging HDD's, 60gb Corsair Force 3, 500gb 970 EVO plus
|
UriGellar
Superclocked Member
- Total Posts : 183
- Reward points : 0
- Joined: 2011/10/31 16:30:05
- Status: offline
- Ribbons : 0
Re:Worst cable management ever? MAYBE! (AKA: Update to my first system posted to Mods Ri
2012/01/10 05:42:30
(permalink)
Put simply you have fallen into a trap that many others fall into in their early outings into PC building (I did it, most others here probably did too) and that is cheaping out on the case... until you really get into building your first thoughts are "well..a case, it's just a box isnt it? how different can they be? as long as it looks nice..."
If you want a very cheap case from a decent name that isn't too big and has excellent cable management for its size and price, I recommend the NZXT Beta EVO, its all black including the interior, has cable routing holes with space behind the mobo tray, has a bottom mounted power supply fitting, looks pretty cool, all tool less fittings except the expansion slots and costs around $45 US, it even has watercooling holes with grommets in the back lol and is great for airflow as well :)
Sadly upgrade didn't happen... system is: AMD Athlon II X4 640 GTX 570 Classified 8gb Corsair Vengeance RAM 1600 ASUS M4A78LT-M-LE mainboard NZXT BETA Evo case Zalman Reserator external tower liquid cooling (black anodised version)
|
