EVGA GTX 970 SC with NZXT Kraken G10 and Corsair H90 Installed!

Author
Big Shadow
iCX Member
  • Total Posts : 449
  • Reward points : 0
  • Joined: 2008/06/28 22:15:27
  • Status: offline
  • Ribbons : 3
2015/01/23 09:13:48 (permalink)

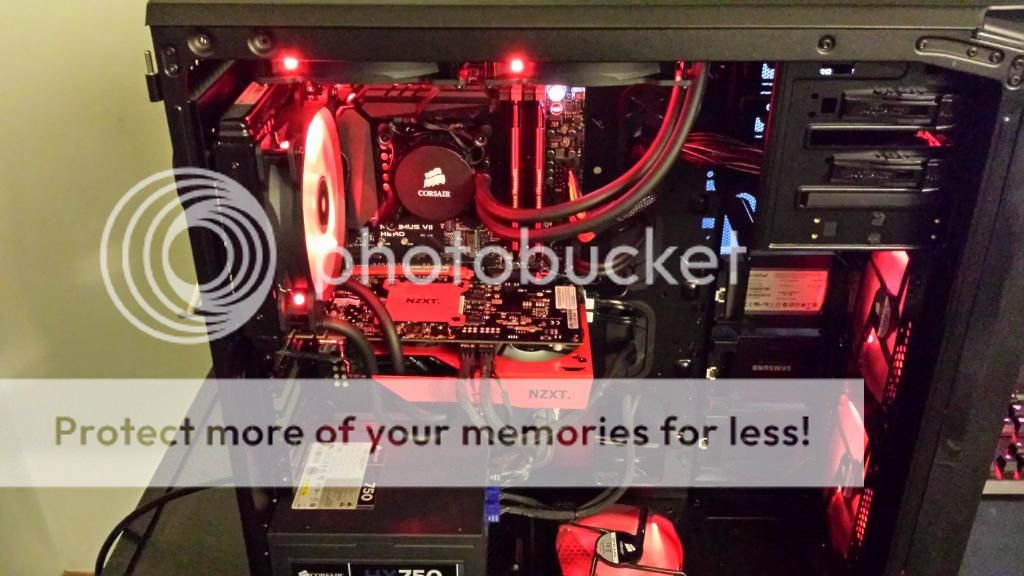

I decided to try this before going for a custom water cooling loop, plus full cover blocks for these cards aren't out yet.

Here's what someone looking to do this may run into:

1. The fan on the G10 bracket blows air over the right side of the GPU, the VRM's are on the left side of the GPU. So I removed the thermal pad from the ACX cooler covering the VRM's and placed it onto the VRM's. Then I mounted some heatsinks I had on hand to the VRM's.

2. When installing the PCI-E power connectors, the space between the G10 bracket and the 970 is limited. Installing the connectors is fine but to push the latches down to remove the connectors may prove challenging since the latches are really close to the G10 bracket.

3. NZXT branding in my mostly Corsair system, lol, not really an issue.

As for the H90, I am using a Corsair SP140 fan in push, I am not using the provided 140mm fan.

Planning to do some testing and I will update this post in the next day or two.

I can say this, idle temps are lower and a quick run thru the Heaven benchmark shows about 20 degree lower temps vs. the ACX 2.0 cooler at 40-50% fan speed at full load, while remaining nearly silent!
