Re: Request for 2011-3 Nateman CPU Block. 2015/03/17 12:16:40 (permalink)
Going off the Stinger Block, this is a REALLY ROUGH draft of the CPU block.  Keeping it as true to the stinger format as possible, just simply based on this review:
http://forums.evga.com/FindPost/2267685



This is just a rough hand-jam @ work while I had a few minutes.  I was going to keep it a solid square just to make my life easier, then I realized base on the blue rectangle on the left side that there are caps to worry about.  So I just opted to make it in an X format.

Again, SUPER rough draft, just keeping as true a form to the Stinger block as I can.  Still haven't finished the lapping machine, but I have an idea how to do so.


#91
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/17 14:13:09 (permalink)
I got a new EVO now since that one had some weirdness to it. Not sure if i want to open it to test them against each other or sell it ..

I am hoping the stinger block is better still.
#92
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/17 17:12:29 (permalink)
So how does the new EVO compare?  Are the temps the same, better, or worst?
#93
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/17 18:54:58 (permalink)
nateman_doo
So how does the new EVO compare?  Are the temps the same, better, or worst?




lol not sure, I am keeping it in the package for right now. I think I will test it this weekend, not much to do other than get some new dress shoes and belt, maybe some new buttons for shirt.
#94
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/17 21:17:34 (permalink)
Please do, because if there is no difference then there is no point making this CPU block?
#95
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/18 06:23:20 (permalink)
okay ill do it, just because you asked nateman and you've done a lot for this community. I dont think the results will change but ill try it out. Will be with a d5 pump and a single 240mm ek pe rad.
#96
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/18 07:55:57 (permalink)
I already committed to the lapping machine, since I can use that for anything.  But I am doing this because you said there was a 5°C temp difference.  I don't think a new block will perform any different since all their blocks (and mine) are all CNC'd which makes the same part over and over.

I don't know how much time their parts are in human hands, but I know the parts I make have LOTS of time in my hands.  I didn't think my block would be 5°C different then someone who has been doing CPU blocks for YEARS, so your second test may hold the answer.  (or you have been installing their block wrong all along ;)
#97
AnonymousGuy
iCX Member
  • Total Posts : 452
  • Reward points : 0
  • Joined: 2014/09/17 21:15:46
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/18 09:34:03 (permalink)
I saw a 5C temperature difference just from using fresh thermal paste vs. thermal paste that has had time to heat cycle and spread out for weeks.  So if he's comparing temps from a block that's been mounted for a while to a block that's been mounted 10 minutes then it's not really comparable.

Workstation:  12900KF @ 5.2Ghz || MSI Pro-A Z690 DDR4|| EVGA FTW3 3090 1000W || G.Skill 3866 4x8GB || Corsair AX1200i || whole-house loop.
Mining Box: HP Prodesk G1 (Haswell 4590), 3x Gigabyte 3080Ti, AX1500i @ 240V.
LANRig/GuestGamingBox: 9900nonK || Gigabyte Z390 Master || ASUS TUF 3090 650W shunt || Corsair SF600 || CPU+GPU watercooled 280 rad pull only || whole-house loop.
Server Router (Untangle): 8350K @ 4.7Ghz || ASRock Z370 ITX || 2x8GB 3200 || PicoPSU 250W, running on AX1200i || whole-house loop.
Server Compute/Storage: 10850K @ 5.1Ghz || Gigabyte Z490 Ultra || EVGA 3060 || LSI 9280i-24 port || 4TB Samsung 860 Evo, 5x10TB Seagate Enterprise Raid 6, 4x8TB Seagate Archive Backup ||  whole-house loop.
Laptop: HP Elitebook 840 G8 (Intel 1185G7) + 3060 Thunderbolt Dock, Razer Blade Stealth 13" 2017 (Int
#98
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/18 14:11:56 (permalink)
AnonymousGuy
I saw a 5C temperature difference just from using fresh thermal paste vs. thermal paste that has had time to heat cycle and spread out for weeks.  So if he's comparing temps from a block that's been mounted for a while to a block that's been mounted 10 minutes then it's not really comparable.


Both used brand new tim. my setup isnt ready for 100% water cooling as I am eaiting for the release of a reservoir from monsoon.
#99
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/19 23:14:40 (permalink)
I am setting a goal to have that lapping machine testing by the end of the day
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/20 11:13:20 (permalink)
Here is said goal:

nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/20 11:14:51 (permalink)
Just in time as something has arrived in the mail:


nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/20 13:26:17 (permalink)

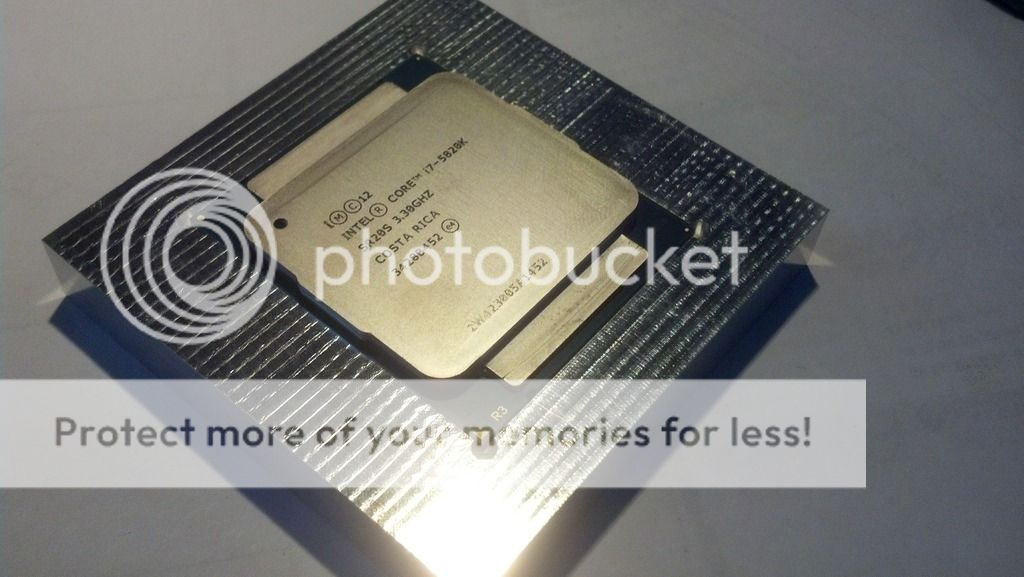

A test with simple polishing compound:

AnonymousGuy
iCX Member
  • Total Posts : 452
  • Reward points : 0
  • Joined: 2014/09/17 21:15:46
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/20 14:46:03 (permalink)
You're going to use it for waterblock lapping or cpu lapping too?  Problem with cpu lapping being you'd need a fixture for every socket to be able to hold it properly.

Workstation:  12900KF @ 5.2Ghz || MSI Pro-A Z690 DDR4|| EVGA FTW3 3090 1000W || G.Skill 3866 4x8GB || Corsair AX1200i || whole-house loop.
Mining Box: HP Prodesk G1 (Haswell 4590), 3x Gigabyte 3080Ti, AX1500i @ 240V.
LANRig/GuestGamingBox: 9900nonK || Gigabyte Z390 Master || ASUS TUF 3090 650W shunt || Corsair SF600 || CPU+GPU watercooled 280 rad pull only || whole-house loop.
Server Router (Untangle): 8350K @ 4.7Ghz || ASRock Z370 ITX || 2x8GB 3200 || PicoPSU 250W, running on AX1200i || whole-house loop.
Server Compute/Storage: 10850K @ 5.1Ghz || Gigabyte Z490 Ultra || EVGA 3060 || LSI 9280i-24 port || 4TB Samsung 860 Evo, 5x10TB Seagate Enterprise Raid 6, 4x8TB Seagate Archive Backup ||  whole-house loop.
Laptop: HP Elitebook 840 G8 (Intel 1185G7) + 3060 Thunderbolt Dock, Razer Blade Stealth 13" 2017 (Int
zophar
CLASSIFIED Member
  • Total Posts : 4749
  • Reward points : 0
  • Joined: 2008/08/26 09:48:56
  • Location: KC,MO
  • Status: offline
  • Ribbons : 26
Re: Request for 2011-3 Nateman CPU Block. 2015/03/20 17:15:59 (permalink)
Thats cool nateman. Need some video of it in action with something. Although I'm sure thats very near.


nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/20 18:08:42 (permalink)
AnonymousGuy
You're going to use it for waterblock lapping or cpu lapping too?  Problem with cpu lapping being you'd need a fixture for every socket to be able to hold it properly.


Nope, I don't normally have people sending me CPU's to lap them.

That video was simply a proof of concept that it could work.  There are improvements that must be made for rigidity, and perhaps the rings need to be steel (or weighted down by steel)
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 05:02:43 (permalink)
So I just ran Intel burn test with the EK Evo, reached around 60C. The Nateman block from last time reached 56-57. Still a 3C difference.

Edit: this is was also with EK thermal brand paste. I'm sure with coollaboratory liquid metal it will be a bigger gap. Evo does perform better than its predecessors.
post edited by seta8967 - 2015/03/28 05:24:48
the_Scarlet_one
EVGA Forum Moderator
  • Total Posts : 23441
  • Reward points : 0
  • Joined: 2013/11/13 02:48:57
  • Location: East Coast
  • Status: offline
  • Ribbons : 78
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 10:10:26 (permalink)
What cpu was it on Seta?

<- Main PC Specs

 <- mATX build
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 16:26:59 (permalink)
4790k. I thought a out using the 4670k as it is a much hotter cpu but decided not too because its not the blocks fault but rather the TIM.
the_Scarlet_one
EVGA Forum Moderator
  • Total Posts : 23441
  • Reward points : 0
  • Joined: 2013/11/13 02:48:57
  • Location: East Coast
  • Status: offline
  • Ribbons : 78
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 16:49:33 (permalink)
Unless you delid, CLLP and CLLU won't help with temp enough to make the mess it will.

<- Main PC Specs

 <- mATX build
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 18:49:37 (permalink)
Scarlet-Tech
Unless you delid, CLLP and CLLU won't help with temp enough to make the mess it will.


i was going to use CLPro, but I dont feel like reapplying it 3 times. I dont have a workbench either. I am really thinking of buying caselabs s8 benchmark set and a z97 eatx to do tests. Eventually want to do product comparisons.
the_Scarlet_one
EVGA Forum Moderator
  • Total Posts : 23441
  • Reward points : 0
  • Joined: 2013/11/13 02:48:57
  • Location: East Coast
  • Status: offline
  • Ribbons : 78
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 19:00:46 (permalink)
Using coolaboratory liquid pro between the ihs and waterblocks is going to be nasty to clean off. You don't want to do that, as it won't provide any better thermal conductivity without a delid. If you are wanting to delid, it should go between the core and ihs.

<- Main PC Specs

 <- mATX build
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 20:31:56 (permalink)
seta8967
So I just ran Intel burn test with the EK Evo, reached around 60C. The Nateman block from last time reached 56-57. Still a 3C difference.

Edit: this is was also with EK thermal brand paste. I'm sure with coollaboratory liquid metal it will be a bigger gap. Evo does perform better than its predecessors.


So the project is still a "GO"?
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/03/28 20:55:18 (permalink)
nateman_doo
seta8967
So I just ran Intel burn test with the EK Evo, reached around 60C. The Nateman block from last time reached 56-57. Still a 3C difference.

Edit: this is was also with EK thermal brand paste. I'm sure with coollaboratory liquid metal it will be a bigger gap. Evo does perform better than its predecessors.


So the project is still a "GO"?




I would say yes, it is up to you. I just got back from another TDY (1 week home, 1 week TDY and repeat forever) so I feel lazy to exchange the blocks. You can wait and I will try the nateman block.
post edited by seta8967 - 2015/03/29 14:01:45
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/04/11 13:13:43 (permalink)
updates shortly (*ahem*  I hope?)
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/04/11 15:05:12 (permalink)
nateman_doo
updates shortly (*ahem*  I hope?)




Money standing by.
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/04/11 15:21:25 (permalink)
A prototype has been built.  Currently out for testing.  I could possibly make another prototype for you.
nateman_doo
Omnipotent Enthusiast
  • Total Posts : 8446
  • Reward points : 0
  • Joined: 2008/01/16 16:16:54
  • Location: NOT the Jersey shore
  • Status: offline
  • Ribbons : 56
Re: Request for 2011-3 Nateman CPU Block. 2015/04/11 21:42:16 (permalink)

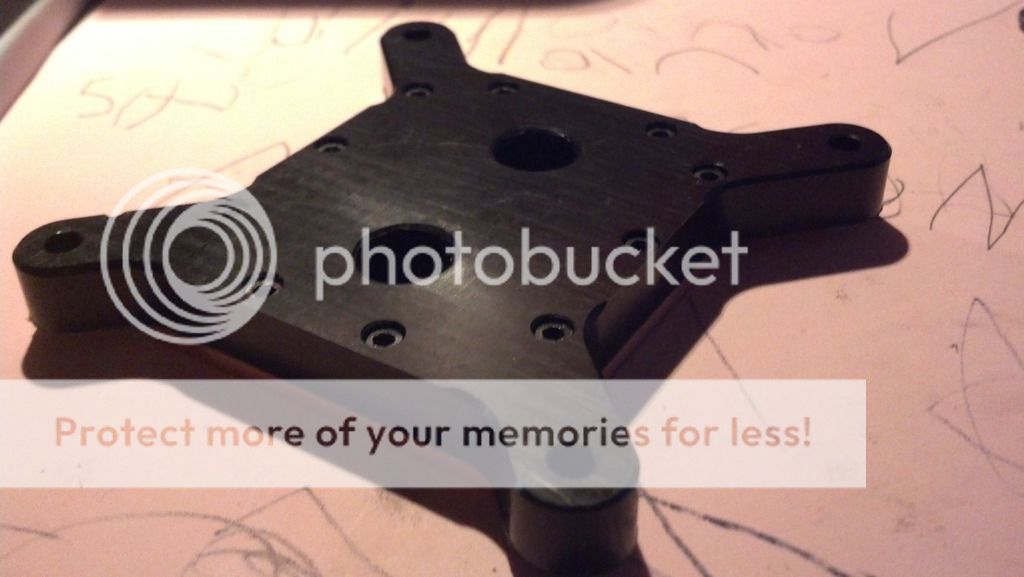

Just a quick picture of a functioning prototype:




 and my 4 year old's scribbles.
seta8967
FTW Member
  • Total Posts : 1813
  • Reward points : 0
  • Joined: 2010/03/03 05:18:45
  • Status: offline
  • Ribbons : 2
Re: Request for 2011-3 Nateman CPU Block. 2015/04/12 01:47:15 (permalink)
Very nice, the drawings that is.

So is it omnidirectional or one way?
HanshinJP
New Member
  • Total Posts : 23
  • Reward points : 0
  • Joined: 2014/01/12 05:26:50
  • Location: Osaka, JPN
  • Status: offline
  • Ribbons : 1
Re: Request for 2011-3 Nateman CPU Block. 2015/04/12 03:22:29 (permalink)
It looks gorgeous!
Page: < 12345.. > >> Showing page 4 of 9
Jump to:
  • Back to Mobile
