My MoBo came with a USB3.0 box that fits in a 3.5" bay, however the cable is too short for my case. Anyone know where I can get a USB3.0 extension cable with male-female header connectors?
|
James_L
CLASSIFIED Member
- Total Posts : 4334
- Reward points : 0
- Joined: 2009/07/29 12:27:56
- Status: offline
- Ribbons : 45
Re:USB3.0 Header extension cable?
2012/02/23 22:45:56
(permalink)
|
Re:USB3.0 Header extension cable?
2012/02/23 23:43:52
(permalink)
|
James_L
CLASSIFIED Member
- Total Posts : 4334
- Reward points : 0
- Joined: 2009/07/29 12:27:56
- Status: offline
- Ribbons : 45
Re:USB3.0 Header extension cable?
2012/02/24 01:15:00
(permalink)
sotiri
Thanks, but it doesn't have an "A" plug, it's the 16pin (I think) MoBo header connector.
You can see it in the pictures here: http://www.asus.com/Mothe...ket_1155/P8P67_DELUXE/
Well I probably should have asked what motherboard it was originally. Usually the USB pin headers on the motherboard fit with the systems front panel connectors without issues. What you are looking for is a 19 pin male to female extension cable for the USB 3.0 device. From what I remember that doesn't exist though you can take some existing USB 3.0 cables and make your own if you have the time and patience. Other than that you would have to contact ASUS directly to see if they have a recommended part available.
|
Re:USB3.0 Header extension cable?
2012/02/24 05:16:11
(permalink)
i7-4770K @ 4.0 / Gigabyte Z87X-UD4H / 8GB DDR3-1600 G.SKILL Ripjaws X EVGA GTX 780 Ti SC / Silverstone Strider Plus 1000W Corsair H110 / CM Storm Stryker CM Storm Trigger / CM Sentinel Advanced --- AMD Sempron 145 / ECS A990FXM-A / 8GB DDR3-1600 G.SKILL Ripjaws X (3) ASUS R9-280X DirectCUII / EVGA SuperNOVA 1000P2 Red Milk Crate --- Epiphone Sheraton R62 / Vox AC15C1 MXR Carbon Copy / ZVEX Vextron
|
James_L
CLASSIFIED Member
- Total Posts : 4334
- Reward points : 0
- Joined: 2009/07/29 12:27:56
- Status: offline
- Ribbons : 45
Re:USB3.0 Header extension cable?
2012/02/24 14:27:23
(permalink)
Sleepee
So are you looking for something like this?
http://cmstore.coolermaster-usa.com/product_info.php?products_id=697
If so, I've got a spare I can send you if you cover shipping for me.
It's trying to be matched up with the box that comes with the motherboard. I don't think that will hook up unless he pulls the innards out of the box and puts extension USB 3.0 male/female into that, which might work depending on what's inside the box at the end. This is what is trying to be extended with a single male/female extender:
|
Re:USB3.0 Header extension cable?
2012/02/24 15:03:12
(permalink)
Thanks guys!
I've been looking all over and think you're right, it doesn't exist.
@sleepee
I'll take this box apart and see what it looks like inside. How long is that cable you have? I need 18". Thanks for the offer.
@scaryone
If sleepee's cable doesn't work I may just have to roll my own. Thanks for the suggestion.
|
Re:USB3.0 Header extension cable?
2012/02/24 22:32:18
(permalink)
i7-4770K @ 4.0 / Gigabyte Z87X-UD4H / 8GB DDR3-1600 G.SKILL Ripjaws X EVGA GTX 780 Ti SC / Silverstone Strider Plus 1000W Corsair H110 / CM Storm Stryker CM Storm Trigger / CM Sentinel Advanced --- AMD Sempron 145 / ECS A990FXM-A / 8GB DDR3-1600 G.SKILL Ripjaws X (3) ASUS R9-280X DirectCUII / EVGA SuperNOVA 1000P2 Red Milk Crate --- Epiphone Sheraton R62 / Vox AC15C1 MXR Carbon Copy / ZVEX Vextron
|
Re:USB3.0 Header extension cable?
2012/02/24 22:33:44
(permalink)
Oh wait, so you're looking for something like these then? Funny, I have two spares for you if you need them.
i7-4770K @ 4.0 / Gigabyte Z87X-UD4H / 8GB DDR3-1600 G.SKILL Ripjaws X EVGA GTX 780 Ti SC / Silverstone Strider Plus 1000W Corsair H110 / CM Storm Stryker CM Storm Trigger / CM Sentinel Advanced --- AMD Sempron 145 / ECS A990FXM-A / 8GB DDR3-1600 G.SKILL Ripjaws X (3) ASUS R9-280X DirectCUII / EVGA SuperNOVA 1000P2 Red Milk Crate --- Epiphone Sheraton R62 / Vox AC15C1 MXR Carbon Copy / ZVEX Vextron
|
James_L
CLASSIFIED Member
- Total Posts : 4334
- Reward points : 0
- Joined: 2009/07/29 12:27:56
- Status: offline
- Ribbons : 45
Re:USB3.0 Header extension cable?
2012/02/24 22:43:22
(permalink)
☄ Helpful

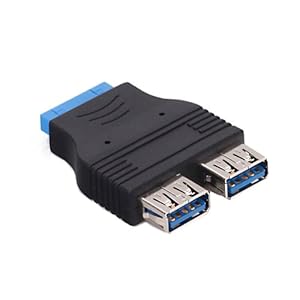

Lian Li makes an adapter. You'll have to find of length USB 3.0 cables to suit your length requirements but this is a direct replacement for that box which came with your motherboard. Just take whatever is inside the box and replace the connections with the cables you need for length and connect this adapter to your motherboard. Had to do a bit of searching but I finally found one which may work for you. Lian Li 20pin USB3.0 to Dual Female Adapter
|
Re:USB3.0 Header extension cable?
2012/02/24 23:45:00
(permalink)
Oh Sweeet! With that plug I can use my male/female extension cables!
Scaryone, your awesome dude! Thank you!
@sleepee,
Thank you too! You guys are the best!
I have some extension cables and it seems I can make the female ends work in that box.
Thanks guys!
|
Re:USB3.0 Header extension cable?
2012/02/25 07:13:06
(permalink)
AB Was Here per request  ...
|
Re:USB3.0 Header extension cable?
2012/02/25 08:12:09
(permalink)
Gotcha gotcha. Well done scary!
i7-4770K @ 4.0 / Gigabyte Z87X-UD4H / 8GB DDR3-1600 G.SKILL Ripjaws X EVGA GTX 780 Ti SC / Silverstone Strider Plus 1000W Corsair H110 / CM Storm Stryker CM Storm Trigger / CM Sentinel Advanced --- AMD Sempron 145 / ECS A990FXM-A / 8GB DDR3-1600 G.SKILL Ripjaws X (3) ASUS R9-280X DirectCUII / EVGA SuperNOVA 1000P2 Red Milk Crate --- Epiphone Sheraton R62 / Vox AC15C1 MXR Carbon Copy / ZVEX Vextron
|
ratman1000000
New Member
- Total Posts : 1
- Reward points : 0
- Joined: 2011/02/09 01:33:38
- Status: offline
- Ribbons : 0
Re:USB3.0 Header extension cable?
2012/04/23 12:24:07
(permalink)
i think i found what the original poster was hoping for: as it will not let me post the link on ebay search for: 20inch USB 3.0 Motherboard 20-Pin Header M/F Round Extension Cable, USB3-2020 by cablesonline.net haven't made sure but take a look.
