SimC33 ought to get around to a new thread, real soon now, but last I knew he was working on 4.4GHz. This placeholder thread ought to do till the Official-Official thread gets up and going. Perhaps we can save our new stability runs here.

dejanh
I did a 4.7GHz run yesterday but did not bother to post it since I could not tie or claim the 1st spot   I think I will just re-run things later down the line if somebody takes my 2nd spot lol.  With current temps there is no way I can go any higher.  I doubt though anyway that I can LinX burn anything higher than 21x226MHz.  It did not seem yesterday that the chip would take it and without Phase or better I am not willing to put 1.6V through it.

Who would have thought 4.7???!!!

The other day I was reading some forum somewhere, populated by what I would call professional overclockers, and they weren't too concerned about blowing it up. Out of a few thousand samples, they had only seen ~five fail. Those they were perfectly willing to call infant mortality or manufacturing defects of one type or another; but that was for many of our over-volt experiments, not for Vcc over 1.55V. For that, need something better than plain water -- but on LN2 it seems, although not generaly confirmed, do whatever you want.

One person uses a small gutted refrigerator.

Re-running my 4.4 LinX test (HT Off) cause I forgot to put my name on the screen shot. It seems to like 4.4 all day long with no problems, but will NOT go 0.05% higher no matter what I do. To me that doesn't make sense, but I have to believe my eyes.

So will we have to re-post all our screen shots?

awalleyeguy
So will we have to re-post all our screen shots?

I don't know if we know what we're going to do. [edit] I just want to post my new one, if it ever finishes LinX.

SimC33
Über Member



Folding Points:
Posts: 1494
Current Blue Ribbons: 6
Joined: 3/31/2009
From: Baton Rouge, LA
Status: offline *Thanks for the BR everyone!!!*

This is a club for the EVGA community for those of us who love and enjoy to OC our core i7 CPUs. It is for those who wish to post their results and build our comminity to help others if need be in reaching a goal they wish to achieve with their rig.

In order to join Club i7 Stability , you must post ONE screenshot containing the following:

1. At least 20 runs of Linx passed with no errors, using a problem size no less than 25,000
(This will require your system to have around 4.8 GB of free memory, which should not be a problem for the majority of core i7 users. Allowing Linx to load and then unload seems to free up some additional memory.)

LinX 0.6.3 IS A REQUIREMENT!

LinX 0.6.3 can be downloaded from this site and I will keep it updated to the newest version for future people to see and use.

http://www.xtremesystems....howthread.php?t=201670


2. CPUz front tab showing your overclock, voltage, and threads.

3. Real Temp showing your min/max temperatures before and during linx.

4. Include a notepad shot with the screenie having your EVGA username DO NOT DO IT SEPARATELY...include it with everything else for ONE screen shot. Example:




It eliminates the chances of accusation of the results being fake or not theirs



5. HT is your preference, but the stats will be divided into two sections. HT on and HT off

6. The i7 MUST be OC'd to 4.0Ghz or above. (Those of you who have 3.8,3.9 etc...I encourage you to reach the goal of 4.0 and enjoy the process of getting yourself there.)

7. Please post the following ABOVE THE SCREENSHOT:

Core i7: (whichever you have)   Batch #:
CPU clocked at:
Voltage:
Idle temps:
Load temps:





Here is the link and a picture of the badge for our sigs for you to show (if you choose to do so)


a larger image is available here:
[link=http://i583.photobucket.com/albums/ss273/speciesss/coreI7_stability_MD_Full.jpg]http://i583.photobucket.c..._stability_MD_Full.jpg[/link]


We will also organize the from highest Ghz to lowest...

This allows you to show your hard work into making it more stable than before.

TRASH TALKING IS PROHIBITED...

We are all here on these forums for a reason and that is to converse about things and give each other guidance and help for whatever need it may be.

Please read this if you get the urge to lash out at someone or someones views.

http://forums.evga.com...1&key=%F1%B6%A2%A6

I hope to see everyone posting their results and this club for EVGA really take off. Thank you for your time and LETS SEE THOSE RESULTS!!!


SimC

-----------------------------------------------------------------------------------------



Results of rigs:



HT TURNED ON

awalleyeguy
Core i7 920 BATCH# 3845B027
CPU clocked at: 4733.8 MHz
Voltage: 1.529
Idle temp: 24,20,24,19
Load temp: 89,86,82,80

dejanh
Core i7 920 D0 Batch #3849A832
CPU clocked at: 4608.7 MHz
Voltage: 1.57500 (idle), 1.482 (load)
Idle temps: 43,39,45,42
Load temps: 84,78,80,77

sgtharry
i7 920 D0 Batch# 3849B028
CPU clocked at: 4482.8
Voltage: 1.541 without vdroop
Idle temps: 35,32,34,29
Load temps: 80,75,75,71

SuperV8
i7 975 EE in E-leet. Batch #: 3910A320
CPU clocked at: 4444.0 MHz
Voltage: 1.45625
Idle temps: 33,30,31,27
Load temps: 82,78,79,72

InTrigger
Core i7 920 D0 Batch #: 3849B202
CPU clocked at: 4420.1 MHz
Voltage: Idle 1.3250 / Load 1.3290 WO/Droop
CPU Host Frequency (Mhz) 211
Idle temps: 39,36,40,34
Load temps: 98,94,92,87
HT & Turbo on
On Air

SniperOZ
Core i7: 920 D0 Batch #: 3910A480
CPU clocked at: 4419.9 MHz
Voltage: 1.517
Idle temps: 47,47,48,42
Load temps: 95,94,89,88

Daddyjaxx
Core i7: 920 Batch #: 3849B202
CPU clocked at: 4419.8 MHz
Voltage: 1.35 BIOS 1.39 Load Without VDROOP
Idle temps: 35,34,35,32
Load temps: 76,73,72,68
HT On/Turbo on

CKY2K
Core i7 920 D0   Batch #: 3845B027
CPU clocked at: 4399.2 MHz
CPU Host Frequency (Mhz) 210
Idle temps: 42,42,43,40
Load temps: 98,98,92,91
Voltage: Idle 1.3325/Load 1.3500 WO/Droop
BIOS: IX58S230
6GB of Ram
HT & Turbo on
On Air

flyingduck88
Core i7 950 DO Batch#3912A940
CPU clocked at: 4395.9 MHz
CPU VCORE @1.400V (in BIOS)
Idle temps: 41,41,41,37
Load temps:84,85,84,82

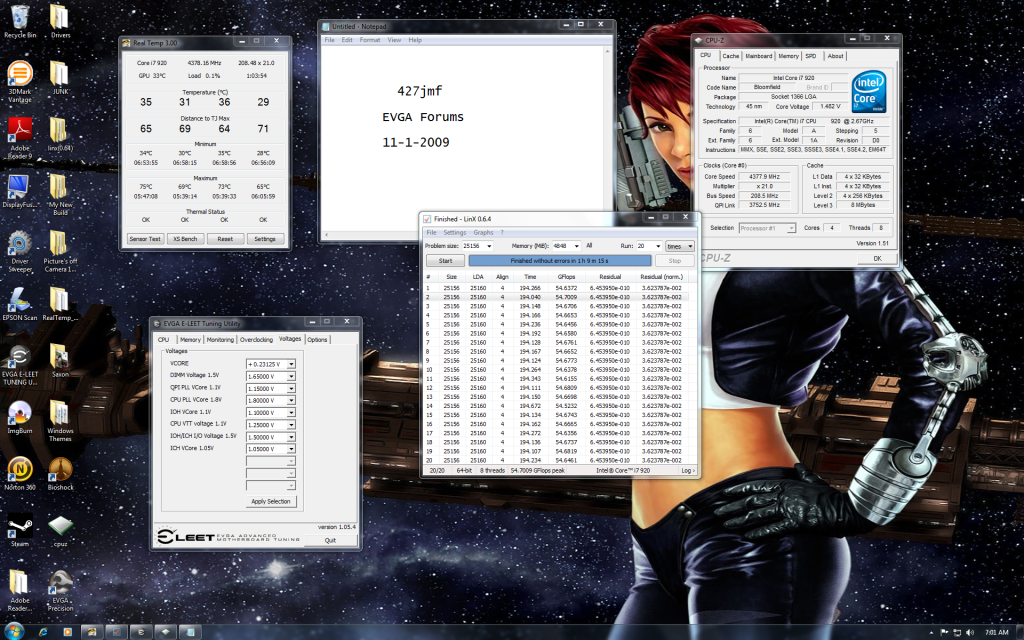

427jmf
Core i7 920: Batch #: 3906A317
CPU clocked at: 4377.9MHz
Voltage: 1.482 W/O vdroop
Idle temp 35,31,36,29
Load Temp 75,69,73,65

grdSavant
CPU: i7 920  D0, Batch #: 3920B649
CPU Clock: 4357.2 MHz on air
Vcore 1.38V w/load, Without Vdroop
Idle Temps: 40,36,40,34
Load Temps: 85,83,83,77

expedision
Core i7: 920  Batch #3845B026 DO
CPU clocked at: 4336.3 MHz on air
Idle Voltage: 1.25 Wo/VDroop
Load Voltage: 1.27
Idle temps: 40,40,39,37
Load temps: 84,84,78,78

Rexrzer77
Core i7 920 D0 Batch#3849B203
CPU Clocked @ 4317.5 MHz (4328.0 MHz in BIOS)
Idle temps: 47,45,47,42
Load temps: 93,97,90,89
12GB SDRAM - Test Complete in 3Hours 24Minutes 56Seconds - 10-11-2009

BDW88
Core i7: 920 D0   Batch #:3849B203
CPU clocked at: 4315.3 MHz
Voltage: 1.35 VDroop on
Idle temps: 37,34,37,33
Load temps: 66,63,66,63

RLudwic
Core I7 920 Batch #: 3849A866
CPU Clocked at: 4315.3 MHz (4326 in BIOS)
Idle Voltage: 1.375
Load Volltage: 1.388
Idle Temps: 37,36,37,35
Load Temps: 83,81,78,77

BigMyke
Core i7: 920  Batch #3845B027 DO
HT = On
CPU clocked at: 4315.0 MHz
Idle Voltage: 1.36 Wo/VDroop
Load Voltage: 1.37
Idle temps: 38,34,37,35
Load temps: 80,76,77,71

Lvcoyote
Core i7 920 Btach # 3845B260
CPU clocked at: 4215.4 MHz
Voltage: 1.26
Idle temps: 43,40,45,39
Load temps: 70,70,72,66

Mvgratz
Core i7 920 Batch #: 3926A286
CPU clocked at 4214.6 MHz
Voltage: 1.341
Idle temps: 45,42,47,44
Load temps: 89,88,84,86

rludwic
Core i7 920 Batch#: 3849A866
CPU Clocked at: 4210.7 MHz
Idle Voltage: 1.317
Load Voltage: 1.329
Idle Temps: 37,36,38,35
Load Temps: 79,77,76,74

hombredelassrtas ( LinX 0.6.1)
Core i7: 920 D0 Batch #:?
CPU clocked at: 4210.6 MHz
Voltage: 1.352v
Idle temps: 32,30,34,27
Load temps: 77,76,75,70

Mikotan
Core i7 920 D0 Batch #: 3846B109
CPU clocked at: 4210.6 MHz
Voltage: 1.39
Idle temps: 35,31,33,29
Load temps: 67,64,65,62

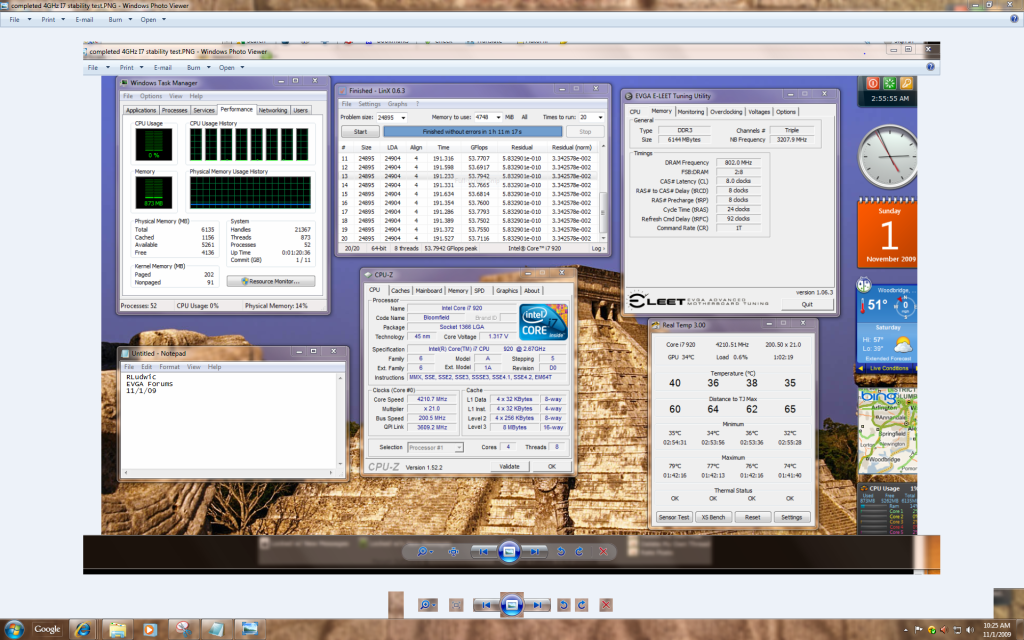

MarkJohnson
Core i7 920 D0 Batch #: 3845B60
CPU Clock: 4210.5 MHz
Idle Voltage: 1.305
Load Voltage: 1.341
BIOS Voltage: 1.350
Idle Temps: 39,36,39,37
Load Temps (Max): 88,87,89,79
Ambient Room Temp: 70F / 21C

mwlhrh
Core i7: 920 D0 Batch #: 3925A260
CPU clocked at: 4210.3 MHz
Voltage: 1.35
Idle temps: 38,35,38,41
Load temps: 82,78,81,77

Ken88
Core i7: 920D0   Batch #: 3919A517
CPU clocked at: 4210.3 MHz
Voltage: 1.4875v Bios w/vdroop
Idle temps: 42,46,44,46
Load temps: 94,92,89,90

schatterjee04
Core i7: i7 920 d0   Batch #: unsure
CPU clocked at: 4200.6 Mhz
Voltage: Bios 1.4, eleet on load 1.35, eleet on idle 1.39
Idle temps: 44,41,43,37
Load temps: 79,79,79,79

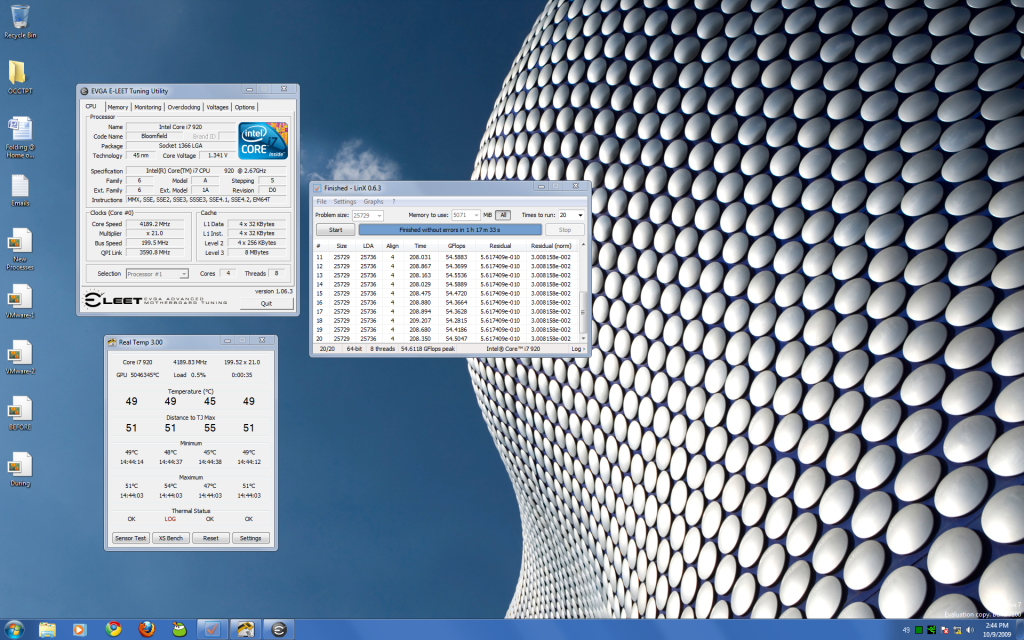

SimC33
Core i7 920 D0 Batch #: 3912B168
CPU clocked at: 4189.8MHz (4.207 Ghz in BIOS)
Voltage: 1.32
Idle temps: 49,49,45,49  <--- temps were right after the LinX passes
Load temps: 95,97,89,93

d1esel
Core i7 920 Batch #: 3849B314
CPU clocked at: 4189.7 MHz
Voltage: 1.27
Idle temps: 38,35,39,35
Load temps:

Johhny80s
Core i7 920 Batch# 3913B270
CPU clocked at: 4189.5 MHz
QPI 200, Vcore 1.3875, W/O Vdroop
Idle temps: 48,45,46,44
Load temps: 92,87,93,83

Kuriin
Core i7 920 Batch #:
CPU clocked at: 4189.4 MHz
Voltages: 1.35
Idle temps: 38,40,38,41
Load temps: 84,83,80,79

Rona1012  (LinX 0.6.2)
Core i7: 920 D0 Batch #: 3923A368
CPU clocked at: 4126.6 MHz
Voltage: 1.3875v w/ VDROOP
Idle temps: 38, 34, 36, 31
Load temps: 77,72,72,67

luv2increase
Core i7: 920 Batch #3841A383 C0
CPU clocked at: 4105.8 MHz On Air
Idle Voltage: 1.282 Without VDroop
Load Voltage: 1.305
Idle temps: 41,39,41,39
Load temps: 88,86,85,82

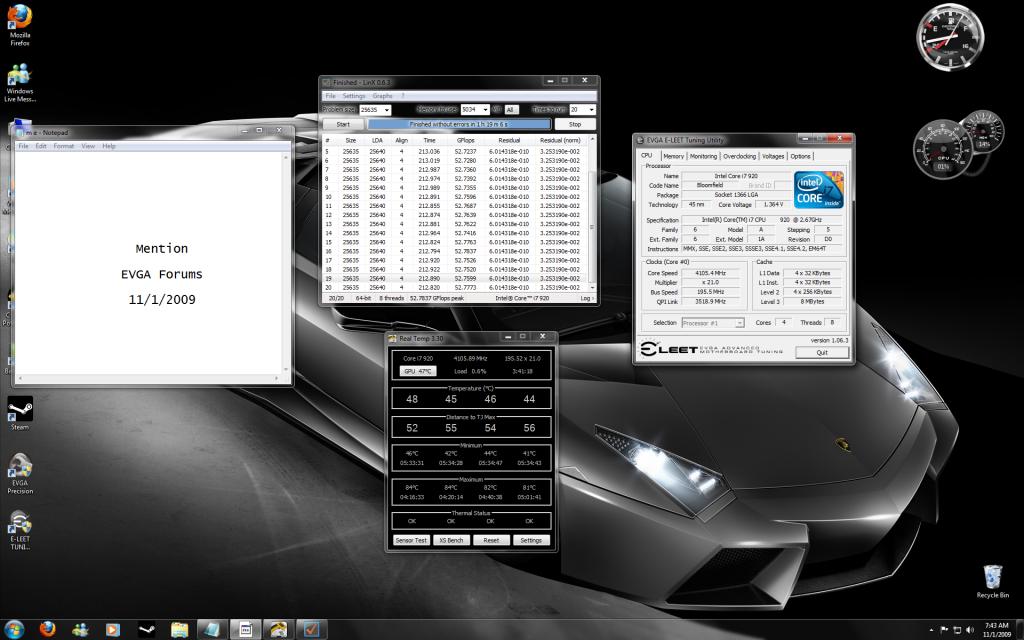

Mention
Core i7: 920 D0 Batch #3912B168
CPU clocked at: 4105.4 MHz
Voltage: 1.375v Bios w/Vdroop (1.30v Load)
Idle temps: 46,42,44,41
Load temps: 84,84,82,81

Gnansly
Core i7 920 Batch#: 3916A217
CPU Clocked at: 4089.7 MHz
Idle Voltage: 1.294
Load Voltage: 1.317
Idle Temps: 36,35,37,36
Load Temps: 76,77,73,72
Ambient Room Temp: 70.3F / 21.3C

MrBalll
Core i7: 920  Batch #: unsure, but it's an 'A' batch
CPU clocked at: 4053.0 MHz
Voltage: 1.31875V
Idle temps: 36,31,35,29
Load temps: 74,69,69,66

plastictree
Core i7: 920 D0 Batch #: 3919A811
CPU clocked at: 4035.2 MHz
Voltage: 1.270 idle / 1.317 load
Idle temps: 33,30,34,29
Load temps: 72,69,70,65

pauljlindner
Core i7: 920 Batch #: 3922A415
CPU clocked at: 4021.9 MHz
Voltage: 1.41250 V
Idle temps: 43,39,43,38
Load temps: 92,93,89,90
HT ON w/ Vdroop

JustinHemi
i7: 920 D0 Batch Number 3919A712
CPU clocked at: 4011.5 Mhz (CPUZ, 20x201) on Air (megahalems)
Volts: 1.350 with vdroop on and HT on
Idle Temps: 43,40,41,40
Load Temps: 78,78,75,77

mudvari
Core i7: 920 D0  Batch #3913B224
CPU clocked at: 4011.00 MHz On Air (191x21)
vCore: 1.31875 W/ VDroop
Idle temps: 37,35,39,34
Load temps: 80,79,77,77

MorSage
i7 965 C0 / Batch Number ? a year ago
CPU clocked at: 4010.1 MHz
Volts: 1.425V
Idle Temps: 41,41,40,38
Load Temps: 83,83,81,79
HT ON
12GB

Kajimbo
Core i7 D0 Batch #: 3913B007
CPU clocked at: 4010.0 MHz (20x 201BLK)
HT: ON
Turbo: OFF
BIOS Voltage: 1.29375 (WITHOUT vdroop)
Idle Voltage: 1.294
Load Voltage: 1.305
Idle temps: 37,34,36,33
Load temps (Max): 78,76,73,72

Chizow
Core i7: 920 D0   Batch #: 3849A866
CPU clocked at: 4010.0 MHz
Voltage: w/o Vdroop 1.29V
Idle temps: 44,42,44,41
Load temps:  83,84,82,82
On Air TRUE with push/pull

Davekozy
Core i7: 920 Batch #: 3910A643
CPU clocked at: 4009.1 MHz
Voltage: 1.400 W/Droop
Idle temps: 40,38,41,37
Load temps: 79,78,75,73

AustinMirage
Core i7: (920-D0) Batch #: 3912B177
CPU clocked at: 4004.5 MHz
Voltage: VCore = 1.3000V, CPU VTT = +100mV*, QPI PLL = 1.175V, VDIMM = 1.625V
Idle temps: 43,41,40,40
Load temps: 86,85,82,81

pheanix
Core i7 920 Batch #:2032A368
CPU clocked at: 4001.2 MHz on air
Voltage: 1.40
Idle temps:40,34,36,32
Load temps: 74,72,72,68

billythekid2012
Core i7 920 Batch #: 3849A911
CPU clocked at: 4001.0 MHz
Voltage: 1.38
Idle temps: 42,40,44,39
Load temps: 85,84,83,80

-----------------------------------------------------------------------------------------

HT TURNED OFF

grdSavant
CPU: i7 920  D0
Batch: 3920B649
CPU clocked at: 4378.2 MHz
Idle Temps:  41,38,41,36
Load Temp2: 74,73,72,68

ty_ger07
Core i7 965 Batch #:
CPU clocked at: 133.7x30 = 4010MHz under load
idle speed indicated by RealTemp is lower since C6 is enabled
Voltage: 1.47v core w/ vdroop on (~1.41v loaded)
Idle: 33,33,34,35
Load: 78,77,77,75


< Message edited by SimC33 -- 11/4/2009 4:09:44 PM >

_____________________________





LCD: BenQ 24" v2400W l CPU: Intel Core i7 920 OC'd to 4.207ghz l GPU: 2X EVGA GeForce GTX 275 l RAM: Kingston HyperX DDR3 2000mhz 6GB pc3 16000 l Mobo: EVGA X58 SLI LE l HDD's: 2 x Velociraptor 300GB 10k RPM in Raid0 l PSU: Silverstone 1000W OP1000-P l Case: Cooler Master HAF 932 l Sound: Supreme FX X-Fi l Windows 7 Ultimate 64bit

expedision

If this was wrong of me to do this i will remove asap.

Good job!

I gave up on 4.0GHz HT on.  Not going to happen.  I guess I just have a bum chip.

I run 3.7xGHz 24/7 with HT on.  But the jump to 4.0 HT on requires a .1v increase.  I thought going from 133x30 to 160x25 would really help me.  It actually did help my core temps to increase bclock, but my motherboard can't take it.  The chip still needs too much power.  My chip topped out at 85c after about half an hour but kept BSODing for IRQ_less_than_or_equal or BSOD 124.  I went back and forth increasing core voltage for IRQ_... error and VTT for 124 error and things were looking good.  CPU temps stayed good.  I thought I was almost stable.  So close.... BSODs would happen 30-45min in to Linx test.

But my motherboard can't handle that sort of power draw.  VREG temps were reaching almost 90c and NB was exceeding 80c.
Here is where I was at:

** Frequency Control
CPU Clock Ratio ( 25X )
CPU Host Frequency ( 160Mhz )
MCH Strap ( 1600Mhz )
CPU Uncore Frequency ( 3200Mhz )
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency ( 100Mhz )

** Memory Feature
Memory Speed ( Standard )
Memory Control Setting ( Enabled )
Memory Frequency ( 1600Mhz { 2:10 } )
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap ( Auto )
tCL Setting ( 8 )
tRCD Setting ( 8 )
tRP Setting ( 8 )
tRAS Setting ( 24 )
tRFC Setting ( 88 )
Command Rate ( 1T )

** Voltage Control
EVGA VDroop Control ( With VDroop )
CPU VCore ( 1.475v {1.42v under load} )
CPU VTT Voltage ( 1.375v { +175mv } )
CPU PLL VCore ( 1.7v )
DIMM Voltage ( 1.65v )
DIMM DQ Vref ( +0mV )
QPI PLL VCore ( 1.250v )
IOH VCore ( 1.10v )
IOH/ICH I/O Voltage ( 1.5v )
ICH VCore ( 1.05v )
PWM Frequency ( 800KHz )

** CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled )
CxE Function ( Disabled )
Execute Disable Bit ( Enabled )
Virtualization Technology ( Disabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.8 GT/s )

Everyone, I posted a new thread for this club just now. I appreciate grd003 for getting it started for me due to my lack of being able to login. So lets start posting there so I can keep the list updated when need be. Thanks everyone!!!

ty_ger07
I gave up on 4.0GHz HT on.  Not going to happen.  I guess I just have a bum chip.

I run 3.7xGHz 24/7 with HT on.  But the jump to 4.0 HT on requires a .1v increase.  I thought going from 133x30 to 160x25 would really help me.  It actually did help my core temps to increase bclock, but my motherboard can't take it.  The chip still needs too much power.  My chip topped out at 85c after about half an hour but kept BSODing for IRQ_less_than_or_equal or BSOD 124.  I went back and forth increasing core voltage for IRQ_... error and VTT for 124 error and things were looking good.  CPU temps stayed good.  I thought I was almost stable.  So close.... BSODs would happen 30-45min in to Linx test.

But my motherboard can't handle that sort of power draw.  VREG temps were reaching almost 90c and NB was exceeding 80c.
Here is where I was at:

** Frequency Control
CPU Clock Ratio ( 25X )
...CLIP....

QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.8 GT/s )

I don't even want to think of this, not at all, I am very lazy, BUT, let's swap processors as an experiment. I'm an engineer and since all of us OC'ers represent ourselves as great empirical analysts, let's just swap.

We, you and I, can document for all time, the great test.

If you can't hit 4,357.3MHz with my chip, then we'll swap motherboards, etc. etc.

I really hate the hassle, but someone ought to try this sort of thing.

ty_ger07
I gave up on 4.0GHz HT on.  Not going to happen.  I guess I just have a bum chip.

I run 3.7xGHz 24/7 with HT on.  But the jump to 4.0 HT on requires a .1v increase.  I thought going from 133x30 to 160x25 would really help me.  It actually did help my core temps to increase bclock, but my motherboard can't take it.  The chip still needs too much power.  My chip topped out at 85c after about half an hour but kept BSODing for IRQ_less_than_or_equal or BSOD 124.  I went back and forth increasing core voltage for IRQ_... error and VTT for 124 error and things were looking good.  CPU temps stayed good.  I thought I was almost stable.  So close.... BSODs would happen 30-45min in to Linx test.

But my motherboard can't handle that sort of power draw.  VREG temps were reaching almost 90c and NB was exceeding 80c.

That last thing I wrote wasn't my main idea, though.

Do you suppose that your Vreg and/or NB could be heatsink related? One or the other I could believe.  But not both.  I don't know.

It looks like it's room ambient or case system temp problem, although we can hardly call room temp a problem -- it is what it is.

Okay folks, let's go. The new official page

http://forums.evga.com/tm.aspx?high=&m=7747&mpage=1

ty_ger07

Update for you Grd.

I have other things I should have been doing.  But I decided to screw it and take some "me time".  I did the thermal paste swap on the NB and Vreg.  Vreg was VERY fiddly to get it right.  I took the thermal pads off the Vreg and then applied thermal paste.  I mounted the vreg and removed it and saw that I had zero contact in the middle and light contact at the edges.  I filed down the vreg mount standoffs to increase edge contact and bent the middle downward and remounted.  I repeated this process over and over until contact was excellent.

Now, my idle Vreg temps are ~50c and loaded vreg temps are ~60c at 3.73GHz.  That is AMAZING!  My loaded Vreg temps at 3.73Ghz before were around 75c.

So, later on when I have more time, I will try 4.0 again.  There should be no reason I shouldn't do it with HT on now.

see: http://forums.evga.com/fb.ashx?m=8462
