Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/18 14:02:48
(permalink)
Grats, sticking with it paid off. GJ.
 920 @ 4.2|875k @ 3.8|980X @ 4.0 "Alright Edgar, now drop a train on 'em... AH!! 423,827 viruses fond. THAT IS NOT A SMALL NUMBER.
|
direraptor22
CLASSIFIED ULTRA Member
- Total Posts : 5729
- Reward points : 0
- Joined: 2008/10/14 00:35:57
- Location: Optimal cruise altitude!
- Status: offline
- Ribbons : 16
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/20 03:03:16
(permalink)
 “The fascination of flight can't be expressed with words. But it really lies beyond the capabilities of human endeavor. Once you've experienced it, you'll never be able to forget it.” - Friedrich Oblessor
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/20 03:14:36
(permalink)
Thank you all..
I've ordered some RAM Corsai Dominator GT 1866.
Yeah Hweed, I was freaking out on the vtt part.
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/27 23:47:56
(permalink)
okay..
how should i set up my rig with these new rams.. keep it 1610 l,lower vdimm ajd tighten timing
|
HalloweenWeed
CLASSIFIED Member
- Total Posts : 4816
- Reward points : 0
- Joined: 2009/11/13 03:32:55
- Location: Maine, USA
- Status: offline
- Ribbons : 36
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 05:05:16
(permalink)
v1ral
okay..
how should i set up my rig with these new rams.. keep it 1610 l,lower vdimm ajd tighten timing
First, how much lower is the V? Just subtract the diff in the specs from your present DIMM V setting. For instance, if your old RAM was 1.65V and the new is 1.6, and you had set 1.77V, set it to 1.72V. That way, if your mobo is undervolting your RAM just a little, you will be properly compensating for it. Then with your old RAM installed, set the known latencies of your new RAM in BIOS, tRFC set "auto," and command rate either "auto" or 2t; set the V, and "save." Wait for the first BIOS screen again - at that point it doesn't matter if the RAM settings caused a prob - immediately turn off the computer (at first BIOS screen) and change your RAM. Then go back into BIOS and confirm the BIOS didn't revert to defaults, boot to Windows and read the highest MHz latency ratings in W/Everest (AIDA64 or CPU tweaker) and plug in tRFC and command rate. Test the first night with Memtest boot CD overnight, or 8 hrs. Then if the new RAM doesn't work well that way, try setting the BIOS to the exact DIMM V setting that Everest reported. You can always try this latter way later even if the previous V setting way works, it will tell you more about exactly what's prob going on with your mobo DIMM V. In each cases, also run at least LinX (or IBT) 50 passes (PS 25K, 25 passes for 36K), and you should also run P95 blend 8hrs min, 24hrs preferred. Just like any other final OC procedure. If this doesn't work at your full OC, then you will need to revert back to stock CPU, set the RAM V and latency settings, set to 2:14, and run the tests that way; then start your OC fresh! At least you will have a very good idea what your settings need to be like this time, and you will be able to take larger Bclock jumps. The diff would probably be just VTT. At the point after you certified your RAM as good at no CPU OC, you could try your full OC again, this time with added VTT - assuming the previous paragraphs did not work at your full OC speed. GL.
post edited by HalloweenWeed - 2011/05/28 05:21:59
Main (gaming) rig: i7-3930K; Asus Rampage IV Extreme; H100 W/p-p Excaliburs, AS5; MSI 7870 2GD5/OC; Crucial M4 SSD 256GB. See my primary ModsRigs: Adam for the rest, and I have a second (wife's) rig Asus Rampage III Extreme & 960: Eve.   Overclocking is useless to me if it is not rock stable.
|
sgtharry
CLASSIFIED Member
- Total Posts : 3928
- Reward points : 0
- Joined: 2006/01/22 06:52:45
- Location: MA.,U.S.A.
- Status: offline
- Ribbons : 7
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 12:36:50
(permalink)
Thanks again for the great replies.
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 13:16:29
(permalink)
well guys this what i did.
i resetted cmos wth old ram..
let windows fully boot
turned off pc.
took out old ram replaced it with new ram
let windows boot completely i set pretty much every to how it was at my 4.2 oc with my oveclock except vtt and vdimm
vdimm is at 1.65 vtt is at 100
i can pass linx with 25k problem size ive lowered vcore to 1.26x the one right above 1.25 temps were topping at 75c
|
HalloweenWeed
CLASSIFIED Member
- Total Posts : 4816
- Reward points : 0
- Joined: 2009/11/13 03:32:55
- Location: Maine, USA
- Status: offline
- Ribbons : 36
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 15:15:29
(permalink)
Main (gaming) rig: i7-3930K; Asus Rampage IV Extreme; H100 W/p-p Excaliburs, AS5; MSI 7870 2GD5/OC; Crucial M4 SSD 256GB. See my primary ModsRigs: Adam for the rest, and I have a second (wife's) rig Asus Rampage III Extreme & 960: Eve. Overclocking is useless to me if it is not rock stable.
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 16:13:44
(permalink)
should i try and overclock higher?
|
sgtharry
CLASSIFIED Member
- Total Posts : 3928
- Reward points : 0
- Joined: 2006/01/22 06:52:45
- Location: MA.,U.S.A.
- Status: offline
- Ribbons : 7
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 16:27:37
(permalink)
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 16:43:04
(permalink)
|
HalloweenWeed
CLASSIFIED Member
- Total Posts : 4816
- Reward points : 0
- Joined: 2009/11/13 03:32:55
- Location: Maine, USA
- Status: offline
- Ribbons : 36
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 16:45:17
(permalink)
Why would you have to ask? LOL
Main (gaming) rig: i7-3930K; Asus Rampage IV Extreme; H100 W/p-p Excaliburs, AS5; MSI 7870 2GD5/OC; Crucial M4 SSD 256GB. See my primary ModsRigs: Adam for the rest, and I have a second (wife's) rig Asus Rampage III Extreme & 960: Eve. Overclocking is useless to me if it is not rock stable.
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 17:35:32
(permalink)
4.4 less than 1.3 vcore any good? Edit: haha.. nvm:P
post edited by v1ral - 2011/05/28 18:29:44
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 18:54:45
(permalink)
Meh, this makes me want to go under water sooner than I plan. My CPU is begging for more speed, but I'm pretty capped thermally with my Megahalems.
4670k@4.4 - ASUS Hero Maximus XI - 2x EVGA GTX 970 - 16GB Memory
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 19:07:04
(permalink)
mistermister
Meh, this makes me want to go under water sooner than I plan. My CPU is begging for more speed, but I'm pretty capped thermally with my Megahalems.
I say do it.. It does lengthen the time of the chip, instead of going SB or what ever. I think I can stick to a 4.3 overclock now so I can utilize this ram's higher speeds and keep it at 2:8. Anyways. About Vdimm, when my old ram needed more vdimm than mfg. spec, does it roll over to these new RAM? I would hate if I did, cause that would be a motherboard problem, *needing more than 1.65 for my G Skill RAM and if I need more vdimm for these "NEW" Corsair ram. Would you guys RMA the board cause of the compensation of the vdimm voltages not going to 1.65 or should I just live with it and adjust accordingly?
|
HalloweenWeed
CLASSIFIED Member
- Total Posts : 4816
- Reward points : 0
- Joined: 2009/11/13 03:32:55
- Location: Maine, USA
- Status: offline
- Ribbons : 36
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/28 19:24:25
(permalink)
v1ral
Would you guys RMA the board cause of the compensation of the vdimm voltages not going to 1.65 or should I just live with it and adjust accordingly?
If your RAM was 1.65V spec, and you needed 1.77V, that's only a 6.8% difference. That's not enough to warrant a RMA.
Main (gaming) rig: i7-3930K; Asus Rampage IV Extreme; H100 W/p-p Excaliburs, AS5; MSI 7870 2GD5/OC; Crucial M4 SSD 256GB. See my primary ModsRigs: Adam for the rest, and I have a second (wife's) rig Asus Rampage III Extreme & 960: Eve. Overclocking is useless to me if it is not rock stable.
|
danielxcloud
SSC Member
- Total Posts : 536
- Reward points : 0
- Joined: 2009/03/11 18:40:56
- Location: Atlanta, GA
- Status: offline
- Ribbons : 5
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/29 08:07:38
(permalink)
Keep pushing it until you physically can't anymore, imo.
If it can go higher? THEN GO HIGHER!
|
Hillguy
SSC Member
- Total Posts : 805
- Reward points : 0
- Joined: 2008/10/05 06:17:13
- Location: Newfoundland
- Status: offline
- Ribbons : 1
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/29 10:47:25
(permalink)
v1ral
should i try and overclock higher?
Sorry but I don't understand the question
EVGA Tri Sli GTX 780Ti SC ACX | Aquacomputer Kryographics Water Blocks | Intel i7 3960X | Koolance CPU-370 Water Block | ASUS Rampage IV Extreme | 16 GB G_Skill Ripjaws Z 2133mhz | 250GB Samsung 840 Evo | Dual Corsair AX1200i | Dual Koolance RP-1000 Pumps | Dual Koolance EHX-1320 4x120mm Rads | W7 Ultimate | Asus PB278Q | Acer 20" | Razer Death Stalker | Razer Death Adder | Thermaltake Armor+
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/05/29 12:48:52
(permalink)
HILLGUY
v1ral
should i try and overclock higher?
Sorry but I don't understand the question
Haha.. Word man.. I can boot with 4.5 and run linx a few runs but I highly doubt I'm stable with the settings!!
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/06/06 19:21:51
(permalink)
I've lowered my vcore to 1.25 for 4.2, how would I go about getting higher gflops Do you think that is any good? I've done a 4.3 submission to the club!! I
|
HalloweenWeed
CLASSIFIED Member
- Total Posts : 4816
- Reward points : 0
- Joined: 2009/11/13 03:32:55
- Location: Maine, USA
- Status: offline
- Ribbons : 36
Re:I want 4.2 ghz on my 920.. help me get there..
2011/06/06 20:12:01
(permalink)
I don't think you will get any better Gflops than 54.x. It is right on par for the max near your OC, W/920.
Main (gaming) rig: i7-3930K; Asus Rampage IV Extreme; H100 W/p-p Excaliburs, AS5; MSI 7870 2GD5/OC; Crucial M4 SSD 256GB. See my primary ModsRigs: Adam for the rest, and I have a second (wife's) rig Asus Rampage III Extreme & 960: Eve. Overclocking is useless to me if it is not rock stable.
|
ihave370gigs
Superclocked Member
- Total Posts : 129
- Reward points : 0
- Joined: 2010/02/19 20:37:52
- Status: offline
- Ribbons : 0
Re:I want 4.2 ghz on my 920.. help me get there..
2011/06/07 07:35:01
(permalink)
Can you please post your voltages. I'm curious because my chip seems to be rather funky, it's been at 4.2 for about 3 years and never blue screened except in linx
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/06/07 08:56:01
(permalink)

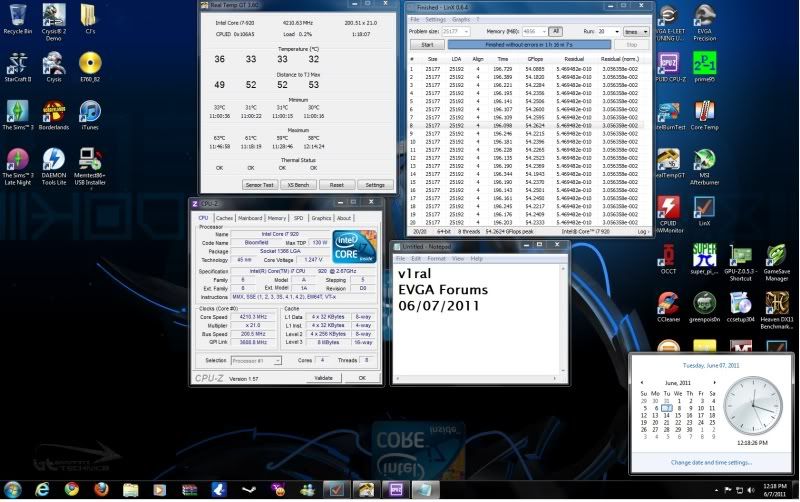

vcore for.that ss is at 1.25
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/06/07 09:20:19
(permalink)
also, when i get home i.will submit my 4.4 ss!!
|
Re:I want 4.2 ghz on my 920.. help me get there..
2011/06/07 09:43:32
(permalink)
a little teaser for 4.4 vcore is just shy of 1.4, i know i cam go lower!!
|
