ello again what is the max range then for your CPU VTT voltages got mine down from 1.64 to 1.55 on a 4.01GHz oc is it still to high should I try and get it lower?

cheers mate will get that sorted oot

1.2v should be stock Vtt voltage for your board, so 1.2+200= 1.4v so you should be good.

Knightviper..... you may wish to raise V-core a bit and then you may be able to lower Vtt a bit and have no stability issues.

.. neilkaz ..

Mother Board ( EVGA X58 Classified E760 )
Drivers ( Intel 9.1.1.1026 )
Bios ( 59 )
CPU ( Intel Core i7 980X Extreme Edition )
CPU Cooler ( Custom Watercooling )
Memory ( 12GB OCZ GOLD 1600 )
PSU ( Corsair HX1000 )
GPU ( Sapphire HD5970 2 GB )
Drivers ( ATI Catalyst 10.5 beta )
Operating System ( Microsoft Windows 7 Ultimate x64 )

Frequency Control
Dummy O.C ( Disabled )
Extreme Cooling ( Disabled )
CPU Clock Ratio ( 33X )
CPU Host Frequency(Mhz) ( 134 )
MCH Strap ( Auto )
CPU Uncore Frequency(Mhz) ( [24X] )
CPU Clock Skew ( 0 ps )
Spread Spectrum ( Disabled )
PCIE Frequency(Mhz) ( 100 )
OC Recorvery ( Disabled )
Turbo Performance ( Diasbled )

Memory Feature
Memory Speed ( Standard )
Memory Control Setting (Enabled )
Memory Frequency ( 1600Mhz / 2:12 )
Channel Interleave Setting ( 6 way )
Rank Interleave Setting ( 4 way )
Memory Low Gap ( Auto )
tCL Setting ( 8 )
tRCD Setting ( 8 )
tRP Setting ( 8 )
tRAS Setting ( 24 )
tRFC Setting ( 88)
Command Rate ( 2T )
... ( Auto )

Voltage Control
EVGA VDroop Control ( Without VDroop )
CPU VCore ( 1.38125V )
CPU VTT Voltage ( +75mV )
CPU PLL VCore ( 1.65000V )
IOH PLL VCore ( 1.65000V )
QPI PLL VCore ( 1.10000V )
DIMM Voltage ( 1.63000V )
DIMM DQ Vref ( +0mV )
IOH VCore ( 1.10000V )
IOH/ICH I/O Voltage ( 1.50000V )
ICH VCore ( 1.10000V )
VTT PWM Frequency ( 250 KHz )
CPU PWM Frequency ( 800 KHz )
CPU Impedance ( Auto )

CPU Feature
Intel SpeedStep ( Disabled )
Turbo Mode Function ( Enabled )
CxE Function ( Disabled )
Execute Disable Bit ( Enabled )
Virtualization Technology ( Enabled )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection ( 4.800 GT/s )

Swapped out my 950, placed my 980X, and 3 run rock-stable @ 4Ghz
LinX 20 passes, Prime95 overnight.
VCore could be lower, Vtt etc also, but stable for now.
Temps @50-54 load.(Idle 20-24)
(Carat7 needs some curing time , so will be lower)

Now it`s up to fine-tuning, but for the moment going to a Lan-party.

Anyone played with the Beta S664 from Shamino? Is it any good?

Mother Board (EVGA X58 Classified 760)
Drivers (9.1.1.1025)
Bios (59)
 CPU (Intel i7-980X )
CPU Cooler (NH-D14)
Memory (6GB G.Skill Perfect Storm DDR3 2000 + 6GB Patriot ViperII(Both GMH-E`s )
PSU (Silverstone DA1000)
GPU (285FTW - SLI)
Drivers (197.13)
Operating System (Vista64 Ultimate)


Frequency Control
CPU Clock Ratio (27x)
CPU Host Frequency (Mhz) (149)
MCH Strap (1333)
CPU Uncore Frequency (Mhz) (3570/24x)
CPU Clock Skew (disabled)
Spread Spectrum (disabled)
PCIE Frequency (Mhz) (101) If using SSDs, Check with your SSD manufacturer before raising above 100.

Memory Feature
Memory Speed (Standard)
Memory Control Setting (Enabled)
Memory Frequency (1784MHz/2:12)
Channel Interleave Setting (6 way)
Rank Interleave Setting (4 way)
Memory Low Gap (auto)
tCL Setting (7)
tRCD Setting (8)
tRP Setting (7)
tRAS Setting (21)
tRFC Setting (72)
Command Rate (1T)


Voltage Control
EVGA VDroop Control (Without Vdroop)
CPU VCore (1.275)
CPU VTT Voltage (+175)
CPU PLL VCore (auto)
**IOH PLL VCore (auto)
DIMM Voltage (1.64)
DIMM DQ Vref (-10mV)
QPI PLL VCore (auto)
IOH VCore (auto)
IOH/ICH I/O Voltage (auto)
**BR04 ( NF200) Voltage ( ) (only on E-759)
**VTT PWM Frequency (370 KHz)
**CPU PWM Frequency (980 KHz)
**CPU Impedance (Less)
**QPI Signal Compensation (Less)
ICH VCore (1.15)


CPU Feature
Intel SpeedStep (Disabled)
Turbo Mode Function (Disabled)
CxE Function (Disabled)
Execute Disable Bit (Disabled)
Virtualization Technology (Disabled)
Intel HT Technology (Enabled)
Active Processor Cores (All )
QPI Control Settings (Enabled)
QPI Link Fast Mode (Enabled)
QPI Frequency Selection (Auto)
OC Recovery (Disabled)
Turbo Performance (Disabled)

PnP/PCI     PCI Express
Maximum Payload Size (4096)

Power Management Setup
ACPI Suspend Type (S1+S3)
HPET Support (Enabled)
HPET Mode (64-bit)

Batch : 3003B475 (Like it already,

CKY2K

XII12

.

Anyone played with the Beta S664 from Shamino? Is it any good?

Installed, but just running the norm 24/7 OC. Haven't tried the new goodies yet.

Adds 1.5x uncore support for b1 CPU
Adds # of GPUs detected @ bootup
Adds RC / AC setting in Memory Timings


Link please :)

Ok, so the only I adjusted was the following:

CPU Vcore - 1.25v
CPU VTT - 1.32v
Dimm Voltage - 1.60v (It's reporting 1.66v)
Vdroop disabled

Everything else is on auto/defaults and I can do 31x multi and 133Mhz for 4.123Mhz.  I am still working on stability as it is somewhat stable, but not quite solid.  I think I will have to push vcore up to 1.27v to get it stable.  Not bad since I only spent about a half hour on it and most of that was waiting for it to save and boot.  I seem to have a pretty low "VID" being that at 3.2Ghz (24x133) only requires 1.12v vcore and that ran all day crunching WCG at 100% load.  Really like this chip, seems to be cooler than my golden batch 920.

Only question I have is why is default VTT set for 1.45v?  Seems high.

Anyone else using BIOS 64 yet?  Just curious if I should flash to 59 or stay with 64.
Thanks.

My 24/7 on air. This was tested with 20 linx passes and 12 hours of prime 95. All core temps stayed in the mid 60's with this template. I can go to 4.43 by simply raising the multiplier to 31 and vcore to 1.400, and turning vdroop off. This is also 20 pass linx stable, however, temps hovered in the mid 80's on air, so that would be the absolute maximum I would try with my chip on air. I am extremely pleased with my 24/7 template. Thanks to the pioneers of this chip for helping me get there with all of the their early data.

Mother Board (EVGA X58 Classified 760)
Drivers (9.1.1.1025)
Bios (S674)
 CPU (Intel i7-980X, 3020A431 )
CPU Cooler (Megahalems )
Memory (6gb Corsair Dominator GT 2000 787201T )
PSU (Corsair AX1200)
GPU (2x EVGA GTX480 SLI )
Drivers (258)
Operating System (Windows 7 64-bit Professional)


Frequency Control
CPU Clock Ratio (29x)
CPU Host Frequency (Mhz) (143)
MCH Strap (Auto)
CPU Uncore Frequency (Mhz) (4013, 28x)
CPU Clock Skew (disabled)
Spread Spectrum (disabled)
PCIE Frequency (Mhz) (101)

Memory Feature
Memory Speed (Standard)
Memory Control Setting (Enabled)
Memory Frequency (1866MHz/2:14)
Channel Interleave Setting (6 way)
Rank Interleave Setting (4 way)
Memory Low Gap (auto)
tCL Setting (7)
tRCD Setting (8)
tRP Setting (7)
tRAS Setting (20)
tRFC Setting (88)
Command Rate (1T)


Voltage Control
EVGA VDroop Control (With Vdroop)
CPU VCore (1.3250)
CPU VTT Voltage (+175)
CPU PLL VCore (1.425)
**IOH PLL VCore (1.425)
DIMM Voltage (1.65)
DIMM DQ Vref (+0mV)
QPI PLL VCore (1.275)
IOH VCore (1.2)
IOH/ICH I/O Voltage (auto)
ICH VCore (Auto)
**VTT PWM Frequency (610 KHz)
**CPU PWM Frequency (1333 KHz)
**CPU Impedance (low)
**QPI Signal Compensation (low)


CPU Feature
Intel SpeedStep (Disabled)
Turbo Mode Function (Enabled)
CxE Function (Disabled)
Execute Disable Bit (Disabled)
Virtualization Technology (Disabled)
Intel HT Technology (Enabled)
Active Processor Cores (All )
QPI Control Settings (Enabled)
QPI Link Fast Mode (Enabled)
QPI Frequency Selection (6.4 GT/s)
OC Recovery (Disabled)
Turbo Performance (Disabled)

PnP/PCI     PCI Express
Maximum Payload Size (4096)

Power Management Setup
ACPI Suspend Type (S1&S3)
HPET Support (Enabled)
HPET Mode (64-bit)

Here is a formula to figure out QPI speed

QPI Frequency Selection
4.8GT - 36 x CPU Host Frequency (Mhz)
5.8GT - 44 x CPU Host Frequency (Mhz)
6.4GT - 48 x CPU Host Frequency (Mhz)

ex: @ 6.4GT  48 x CPU Host Frequency (Mhz) 150 = 7.20GT
      @ 4.8GT  36 x CPU Host Frequency (Mhz)  200 = 7.20GT

I have tested how far I can push bclk and at 230bclk currently using 4.8GT setting. @202bclk I found  on my board a 760 with a Q4EG ES, basiclly same as 980x.  I found that changing the setting on QPI Signal Compensation to less helped me push bclk up from there. Stuck with what Shamino said  about Gulftown likes a 1866 MCH Strap and seemed to work for me so far. Here is a little read on QPI that helped me...

http://www.maximumpc.com/article/features/ultimate_core_i7_overclocking_guide_we_push_nehalem_its_limits?page=0,1

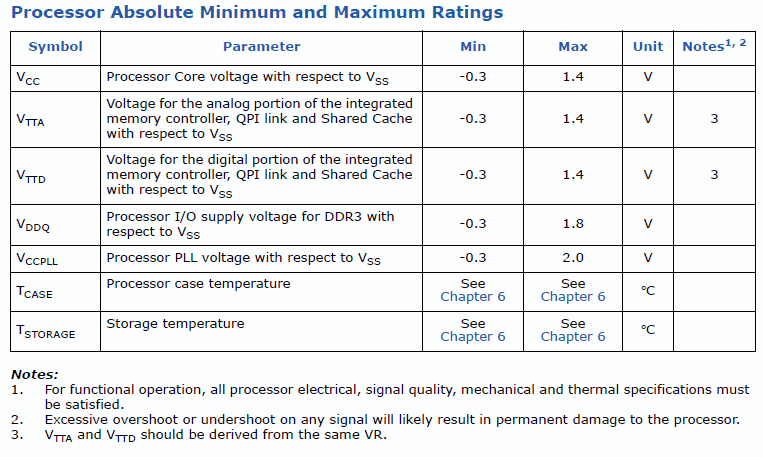

well i guess it comes down to cooling as usual, i have been above that 1.4 Vcc  figure since day one many months ago, and for vantage runs well lets just say that my Vcc  goes much much higher

Mother Board ( EVGA X58 Classified E-760 )
Drivers ( 9.1.1.1025 )
Bios ( 74 )
 CPU (i7-980x ) ( ) (with 920's please also add the stepping CO or DO)
CPU Cooler (Mega Shadow  )
Memory ( Corsair Dominator GT 2000  )
PSU ( Corsair HX1000W )
GPU ( GTX480s in SLI )
Drivers ( 258.96 )
Operating System ( Windows 7 64 Ultimate )


Frequency Control
CPU Clock Ratio (32  )
CPU Host Frequency (Mhz) ( 135 )
MCH Strap ( Auto )
CPU Uncore Frequency (Mhz) (Auto  )
CPU Clock Skew ( 0ps )
Spread Spectrum (Disabled )
PCIE Frequency (Mhz) ( 100 ) If using SSDs, Check with your SSD manufacturer before raising above 100. The higher you raise the PCI-e Frequency the more problems you will see. Any problems with NICs or USB return this setting to 100.


Memory Feature
Memory Speed ( Standard )
Memory Control Setting ( Enabled )
Memory Frequency (1867/2:14  )
Channel Interleave Setting ( 6 Way )
Rank Interleave Setting ( 4 Way )
Memory Low Gap (2.5 )
tCL Setting (8  )
tRCD Setting (8  )
tRP Setting ( 8 )
tRAS Setting (24  )
tRFC Setting ( 88 )
Command Rate ( 1T )
tRL (+0  )

Voltage Control
EVGA VDroop Control (Without VDroop )
CPU VCore (1.35000 )
CPU VTT Voltage (+250 )
CPU PLL VCore (1.5000 )
**IOH PLL VCore (1.5000  )
DIMM Voltage ( 1.65 )
DIMM DQ Vref (+0mv  )
QPI PLL VCore ( Auto ) Raising this will help you lower your VTT
IOH VCore ( Auto ) Set to 1.2 if you are using more then 1 video card
IOH/ICH I/O Voltage (Auto )
**BR04 ( NF200) Voltage ( ### ) (only on E-759)
**VTT PWM Frequency (250  )
**CPU PWM Frequency ( 800 )
**CPU Impedance ( Auto )
**QPI Signal Compensation (Auto  )
ICH VCore (Auto  )
*PWM Frequency ( Not Used on Classified )


CPU Feature
Intel SpeedStep (Disabled  )
Turbo Mode Function (Enabled  )
CxE Function (Disabled  )
Execute Disable Bit ( Disabled )
Virtualization Technology (Disabled  )
Intel HT Technology ( Enabled )
Active Processor Cores ( All )
QPI Control Settings ( Enabled )
QPI Link Fast Mode ( Enabled )
QPI Frequency Selection (4.800GT/s )
OC Recovery ( Enabled )
Turbo Performance ( Diabled ) used with 980X only

PnP/PCI     PCI Express
Maximum Payload Size ( 128 )

Power Management Setup
ACPI Suspend Type (S1  )
HPET Support ( Enabled )
HPET Mode ( 32-bit mode )
