EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR)

Author
Post
Essentials Only Full Version
oqsajec
New Member
  • Total Posts : 8
  • Reward points : 0
  • Joined: 2009/08/23 16:01:31
  • Location: Hot ass Texas
  • Status: offline
  • Ribbons : 0
2011/02/14 00:25:32 (permalink)
I got me a question that customer service couldn't answer.......Is the GTX 460 SSC+ on the nvidia reference pcb? I want to water cool it with one of 2 blocks.....
(EK-FC460 GTX) from EK or the VID-NX460 from Koolance BUT they require the card to be the nvidia reference pcb. Can someone give me a hand here? According to Anandtech (http://www.anandtech.com/print/3810) the card IS the reference layout but on the 768mb model. Also on the "coolingconfigurator" website for EK says that it will fit the reference card, even shows an image of the 460 (non EE).....but it's not specific enough for me. http://www.coolingconfigu...terblock/3831109830161
Thanks a bunch.....I'm trying to upgrade my 9800gtx+'s.....they're gettin old.

Win XP SP3 32bit , Win 7 Ultimate 64 bit----dual boot OS
ASUS M3N-HT 780a tri-sli mobo
AMD Phenom 2 X4 955BE C3@4.5ghz w/Koolance block
1X EVGA GTX460 SSC+, 1X EVGA GTX460 SC EE w/
Koolance Blocks, SC has EK backplate
Corsair 850TX
8gb Kingston HyperX T1
250gb WD Caviar SE
1tb WD Caviar Black
2X Crucial M4's in raid 0
Samsung Blu-Ray
Corsair Obsidian 800D.....modded for dual
loops.
CPU=240 black ice GT rad, Koolance RP-401X2 reservoir & PMP-400 pump, Koolance cpu-360

GPU's=360 black ice GT stealth rad, 250ml res, PMP 400 pump, Koolance vid-nx460 x2
#1

8 Replies Related Threads
    HOSHUA79
    New Member
    • Total Posts : 7
    • Reward points : 0
    • Joined: 2008/03/13 17:47:35
    • Status: offline
    • Ribbons : 0
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/02/27 23:27:38 (permalink)
    Or it would help us get a visual if someone can post a picture of the 01G-P3-1380-KR below the heat-sink so we can look at it for refrence.

    #2
    1MadGrunt
    SSC Member
    • Total Posts : 612
    • Reward points : 0
    • Joined: 2010/01/22 15:10:56
    • Location: Texas
    • Status: offline
    • Ribbons : 4
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/11 06:45:19 (permalink)

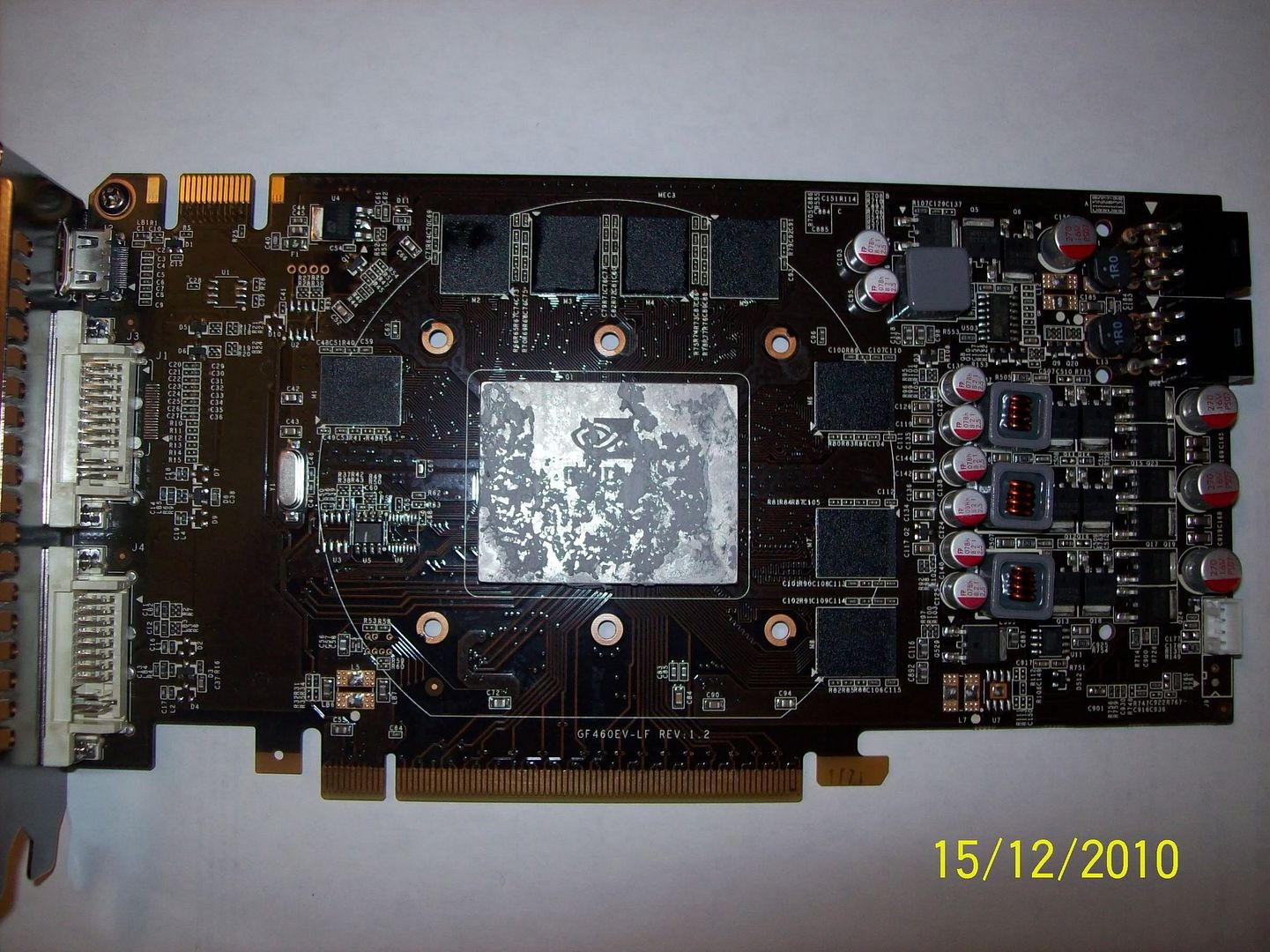

    Has anyone verified if those waterblocks will work with the SSC+? I believe the picture below is of the SSC+. I would also like to watercool my SSC+ cards as well.





    #3
    kram36
    Omnipotent Enthusiast
    • Total Posts : 14333
    • Reward points : 0
    • Joined: 2009/10/27 19:00:58
    • Location: United States
    • Status: offline
    • Ribbons : 46
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/11 09:34:21 (permalink)
    If that's the SSC+ then it's not the reference design, but I don't think that pic is a SSC+ card.

    What you need to look at for a quick reference is the fan connector. It will be sideways and also between two of the capacitors.

    This is a picture of the EVGA 460 SSC+ from newegg's picture gallery of the card. Look at the fan header. The SSC+ is a reference design card and should work with those blocks.



    #4
    1MadGrunt
    SSC Member
    • Total Posts : 612
    • Reward points : 0
    • Joined: 2010/01/22 15:10:56
    • Location: Texas
    • Status: offline
    • Ribbons : 4
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/11 13:52:19 (permalink)
    I wasn't sure if the image I snagged was the SSC+ or not but thanks for the info Kram.



    #5
    donta1979
    Omnipotent Enthusiast
    • Total Posts : 14285
    • Reward points : 0
    • Joined: 2007/02/11 19:27:15
    • Location: Under your bed!!!
    • Status: offline
    • Ribbons : 62
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/11 15:17:24 (permalink)
    I just want 2x of its backplates but sadly they prob wont go on an EE


     Heatware  My Affiliate Code: 1YXDGWSWU7 My Old School Drivers Updating/Installing Guide
    #6
    RunicEvil
    ACX Member
    • Total Posts : 309
    • Reward points : 0
    • Joined: 2010/09/17 12:53:46
    • Location: USA
    • Status: offline
    • Ribbons : 0
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/11 18:32:54 (permalink)
    I thought the EE was a reference card as well. Just not a reference cooler.


    #7
    txsouthpaw
    SSC Member
    • Total Posts : 543
    • Reward points : 0
    • Joined: 2010/08/25 12:39:28
    • Location: DFW
    • Status: offline
    • Ribbons : 1
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/11 20:33:14 (permalink)
    The large picture shown above is of an Asian market GTX 460 PCB and is non-reference (check out the power phases). Also, the SSC+ should ship with the VRM heatsink included and is built upon a reference PCB.

    2700K @ 4.9 GHz ||| Megahalems P/P ||| Z77X-UD5H ||| 8gb Patriot Viper Xtreme 2133 MHz ||| MSI 460 Hawk 900/1800/4400 QDR||| 120gb SanDisk Extreme + 4x 74gb Raptor RAID0 ||| PCP&C Silencer 750 ||| Carbide 300R
    #8
    HOSHUA79
    New Member
    • Total Posts : 7
    • Reward points : 0
    • Joined: 2008/03/13 17:47:35
    • Status: offline
    • Ribbons : 0
    Re:EVGA GeForce GTX460 SSC+ Graphics Card w/ Backplate (01G-P3-1380-KR) 2011/03/13 13:35:54 (permalink)
    Well I will have one in my had in the next week so I will post once I know.
    #9
